Corsair K57 RGB Wireless Gaming Keyboard Manual

Contents

CHARGING THE KEYBOARD

The K57 RGB WIRELESS keyboard must be fully charged before its first use.

  • Connect the keyboard to an available USB 2.0 or USB 3.0 port on your PC with the USB charging / data cable.
  • The battery / wireless status LED indicator will begin pulsing green to denote battery charging and will turn solid green when charging is complete.
STATUS LED INDICATOR BATTERY STATUS
PULSING GREEN CHARGING
PULSING RED CRITICAL
SOLID RED LOW
BLINKING AMBER MEDIUM
BLINKING GREEN HIGH
SOLID GREEN CHARGED

GETTING TO KNOW THE KEYBOARD

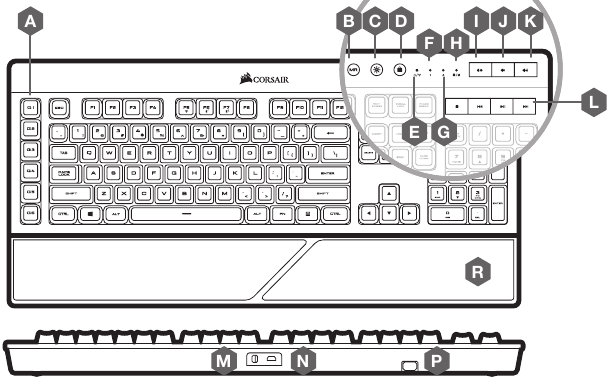

GETTING TO KNOW THE KEYBOARD Step 1
GETTING TO KNOW THE KEYBOARD Step 2

  1. SIX PROGRAMMABLE MACRO KEYS
  2. MACRO RECORD KEY
  3. BACKLIGHT BRIGHTNESS KEY
  4. WINDOWS KEY DISABLE
  5. BATTERY / WIRELESS STATUS INDICATOR
  6. NUM LOCK LED INDICATOR
  7. CAPS LOCK LED INDICATOR
  8. WINLOCK / MACRO STATUS INDICATOR
  9. MUTE KEY
  10. VOLUME DOWN KEY
  11. VOLUME UP KEY
  12. DEDICATED MULTIMEDIA KEYS
  13. POWER SWITCH
  14. USB CHARGING / DATA PORT
  15. USB WIRELESS RECEIVER
  16. USB WIRELESS RECEIVER HOLDER
  17. USB CHARGING / DATA CABLE
  18. PALM REST

SETTING UP 2.4GHz SLIPSTREAM WIRELESS

Hyper-fast sub-1ms wireless connection is designed for no-compromise gaming grade performance.

  • Toggle power switch to turn on the keyboard.
  • Connect the USB wireless receiver to an available USB 2.0 or 3.0 port located on the front panel of your PC.
  • The status LED indicator will turn solid white when connected.

If reconnection is required, initiate USB wireless receiver pairing via the iCUE software settings menu and hold FN + F5 on the keyboard for 2 seconds.

SETTING UP BLUETOOTH® WIRELESS

Bluetooth wireless is best for everyday computing tasks, productivity and office applications.

  • Initiate Bluetooth pairing on your Bluetooth 4.0 or higher enabled device.
  • Toggle power switch to turn on the keyboard.
  • Hold FN + F6 until status LED indicator blinks blue.
  • Follow the instructions to successfully connect your device.

The K57 RGB WIRELESS has two Bluetooth keys (F6 and F7) allowing you to remember and easily switch between two Bluetooth host devices.

STATUS LED INDICATOR CONNECTIVITY STATUS
BLINKING WHITE SLIPSTREAM WIRELESS PAIRING
SOLID WHITE PAIRED
PULSING WHITE PAIRING FAILED
BLINKING BLUE BLUETOOTH WIRELESS #1 PAIRING
SOLID BLUE PAIRED
PULSING BLUE PAIRING FAILED
BLINKING CYAN BLUETOOTH WIRELESS #2 PAIRING
SOLID CYAN PAIRED
PULSING CYAN PAIRING FAILED
SOLID YELLOW USB CONNECTED

BUILT-IN LIGHTING MODES

K57 RGB WIRELESS features dynamic per-key lighting, fully-programmable with iCUE software to enable virtually unlimited lighting customization. It also comes with 11 built-in onboard lighting modes for instant illumination. Those modes can be accessed by FN combo key.

LIGHTING MODE FN + KEY COMBO LIGHTING EFFECT
1 FN + 1 SPIRAL RAINBOW
2 FN + 2 RAIN
3 FN + 3 RAINBOW WAVE
4 FN + 4 VISOR
5 FN + 5 TYPE LIGHTING (KEY)
6 FN + 6 TYPE LIGHTING (RIPPLE)
7 FN + 7 COLOR SHIFT
8 FN + 8 COLOR PULSE
9 FN + 9 COLOR WAVE
10 FN + 0 STATIC
11 FN + - NO LIGHTING

Dynamic lighting modes can be further customized for speed, duration and direction.

LIGHTING MODES FN + KEY COMBO FUNCTION
1 2 3 4 5 6 7 8 9
● ● ● ● x x ● ● ● ↓ SPEED (FAST, MEDIUM, SLOW)
x x x x ● ● x x x DURATION (LONG, MEDIUM, SHORT)
● ● ● ● x x ● ● ● ↑ SPEED (SLOW, MEDIUM, FAST)
x x x x ● ● x x x DURATION (SHORT, MEDIUM, LONG)
x x ● x x x x x ● ← DIRECTION (LEFT)
● x x x x x x x x DIRECTION (COUNTER-CLOCKWISE)
x x ● x x x x x ● → DIRECTION (RIGHT)
● x x x x x x x x DIRECTION (CLOCKWISE)

LIGHTING AND BATTERY LIFE

On a full charge, the K57 RGB WIRELESS keyboard lasts for up to 170 hours of continuous use and may vary depending on the usage, lighting brightness, wireless mode and other factors. Refer to the table below for estimated, maximum battery life you may expect.

BRIGHTNESS LEVEL BATTERY LIFE, UP TO
0 (LIGHTING OFF) 175 HOURS
1 35 HOURS
2 20 HOURS
3 (MAX. BRIGHTNESS) 8 HOURS

MACRO FUNCTIONS

K57 RGB WIRELESS gaming keyboard has dedicated G1-G6 macro keys. Those keys can be assigned to perform certain single or multi-key press actions for quick access during gaming or everyday computing.

TO RECORD MACRO:

  • Press MR key. The macro status LED indicator will start blinking yellow to confirm macro recording mode is now on.
  • Select G-key you want the macro assigned to. The macro status LED indicator will start blinking rapidly to indicate macro recording is now in progress. Up to 50 key events can now be recorded.
  • Press MR key to stop macro recording. The macro status LED indicator will stop blinking.
    TO RECORD MACRO

TO EXECUTE MACRO:

  • Press any G1-G6 key to play previously recorded macro.
    TO EXECUTE MACRO

SPECIAL MACRO KEY FUNCTIONS:

  • Press and hold MR key for 2 seconds to enter Special Macro Key Functions mode. The macro status LED indicator will turn solid yellow to confirm the new mode of operation. While in this mode, you have access to three macro key functions.

TO ENABLE ANY G1-G6 MACRO KEY:

  • Press any G1-G6 key again to enable the macro key. The macro status LED indicator will blink rapidly once to confirm selected key is now enabled.

DISABLE ANY G1-G6 MACRO KEY:

  • Press any G1-G6 key to disable the macro key without deleting action (if previously assigned). The macro status LED indicator will blink rapidly twice to confirm selected key is now disabled.

TO DELETE MACRO ASSIGNED TO G1-G6 MACRO KEY:

  • Press and hold any G1-G6 key for 3 seconds to delete macro previously assigned to the key. The macro status LED indicator will blink rapidly three times to confirm macro has been deleted.

To exit Special Macro Key Functions mode, press and hold MR key for 2 seconds. The macro status LED indicator will turn off to confirm.

STATUS LED INDICATOR MACRO STATUS
SOLID YELLOW MACRO CONFIGURE MODE
BLINKING YELLOW MACRO RECORDING READY
RAPID BLINKING YELLOW MACRO RECORDING IN PROGRESS
RAPID BLINK YELLOW x1 ENABLE MACRO
RAPID BLINK YELLOW x2 DISABLE MACRO
RAPID BLINK YELLOW x3 DELETE MACRO

WEB: corsair.com
PHONE: (888) 222-4346
SUPPORT: support.corsair.com
BLOG: corsair.com/blog
FORUM: forum.corsair.com
YOUTUBE: youtube.com/corsairhowto

© 2019 CORSAIR COMPONENTS, INC. All rights reserved. CORSAIR and the sails logo are registered trademarks in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured. 49-001846 AA
