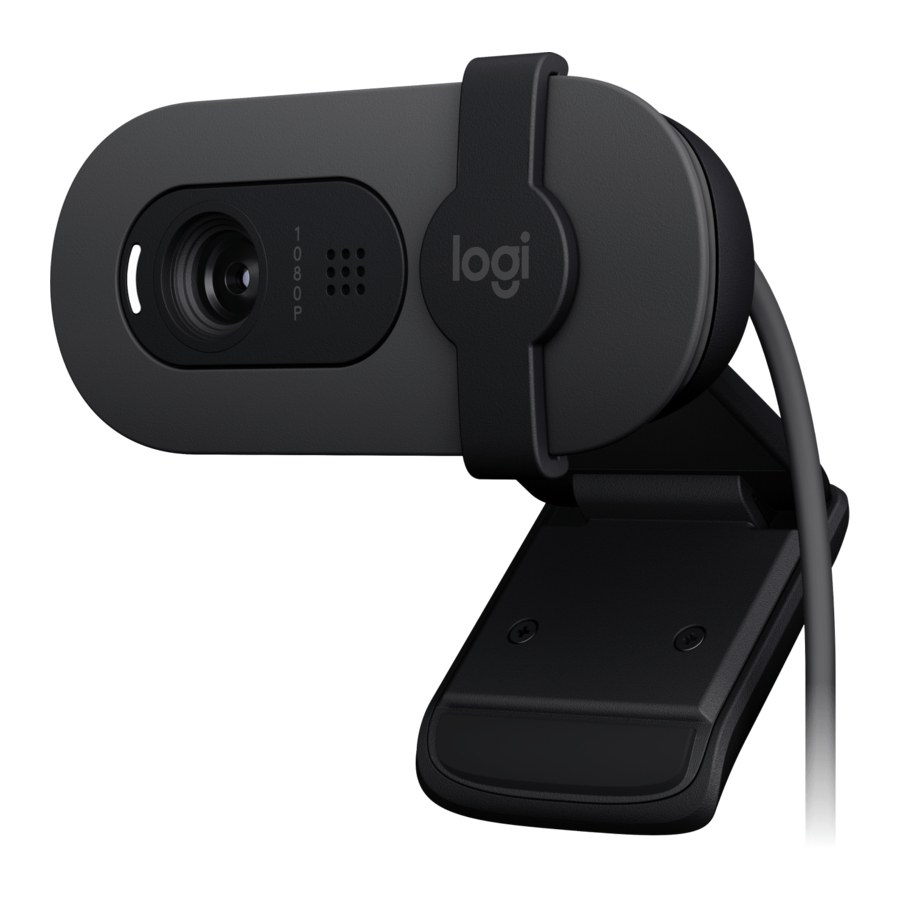

Logitech BRIO 100 - Full HD 1080p Webcam Manual

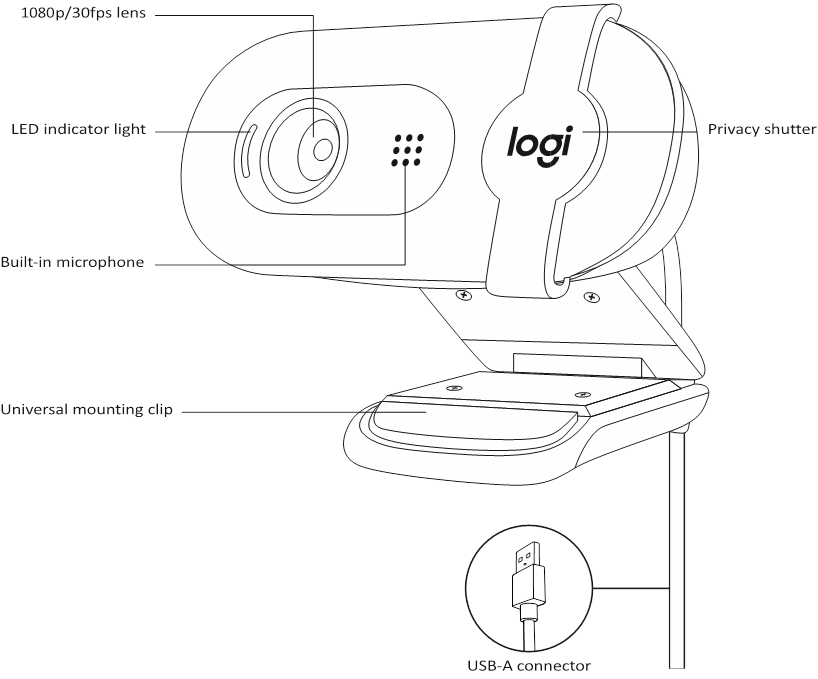

KNOW YOUR PRODUCT

WHAT'S IN THE BOX

1. Webcam with 7 ft (2 m) attached USB-A cable
2. User documentation

SETTING UP THE WEBCAM

For placement on a monitor

1. Place your webcam on a computer, laptop or monitor at a position or angle you desire

2. Adjust the webcam to make sure the end of the universal mounting clip is flush with the back of your device

3. Manually tilt the webcam up or down to frame yourself within the camera's view


CONNECTING THE WEBCAM VIA USB-A

Plug the USB-A connector into the corresponding port on your computer

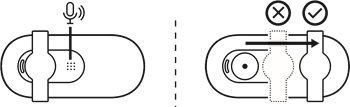

SUCCESSFUL CONNECTION

LED light indicates when the webcam is on and being used by an application

Open the privacy shutter by gently sliding it from left all the way to right.
Be sure it does not cover the built-in microphone

DIMENSIONS

WEBCAM:
Height x Width x Depth: 1.26 in (31.91 mm) x 2.87 in (72.91 mm) x 2.62 in (66.64 mm)
Weight: 2.65 oz (75 g)

www.logitech.com/support/Brio100
