Apogee Jam+ User Manual

Contents

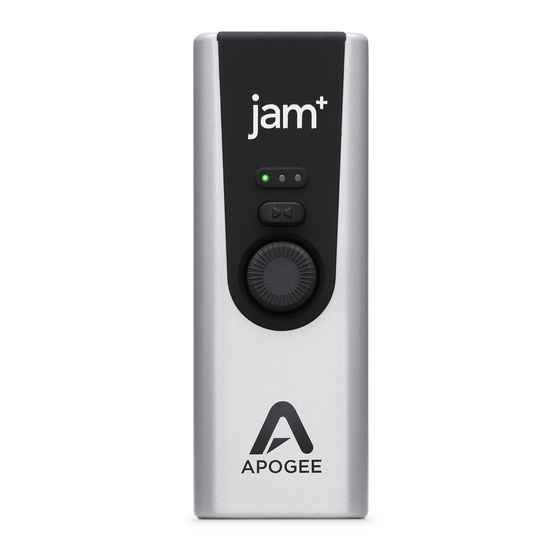

Product Tour Apogee Jam+

  1. 1/4" Instrument input
  2. 3 multicolor LEDs for status, input level and Blend mode indication
  3. Headphone output Blend control for low latency recording
  4. Input gain adjustment knob Push to select Overdrive or Clean mode
  5. 1/8" Headphone or powered speaker output
  6. USB port

In The Box

  • Apogee Jam+
  • BIAS FX JAM software download instructions
  • User's Guide
  • Warranty Booklet
  • Lightning cable
  • USB cable (Type C)
  • USB cable (Type A)

Status & Input Level Indicator LEDs

  1. Single Blue = Powered but not connected to recording software
  2. Single Green = Connected and working with recording software
  3. Green left-to-right = Audio level meter with Clean mode on
  4. Green + Orange = Approaching maximum input level
  5. Red = Input Overload, Gain should be lowered
  6. Orange left-to-right = Audio level meter with Overdrive mode on
  7. Single White = Blend on, returns to input level after 1 second

Connecting to the Computer/iOS Apogee Jam+

  1. Connect cable
    Connect cable
  1. Open a recording program and set up track
    Open a recording program and set up track Step 1
    Open a recording program and set up track Step 2
  1. Connect Headphones to Jam+
    Connect Headphones to Jam+
  1. Adjust Gain & Blend
  2. Record
  3. Use volume buttons on computer/iOS device to adjust playback level

Indicators and Controls Apogee Jam+

Input Gain Knob

  1. Turn Input Gain knob to adjust input signal level
    Input Gain Knob Step 1
  2. Less Gain More Gain

    Clean mode


    Overdrive mode
  3. LEDs progressively light green or orange to indicate the gain setting
  4. Push Gain knob to toggle Clean/Overdrive Mode.
    Input Gain Knob Step 4

    Clean mode


    Overdrive mode

Blend Control Button

  1. Push Blend button to turn on low latency monitoring feature
    Blend Control Button Step 1
  2. Press once to turn on
    Blend Control Button Step 2
  3. Center white LED indicates Blend on
    Headphone mix is 50% app, 50% input
  4. Press again to turn off
    Blend Control Button Step 3

LEDs off indicates Blend feature is off

  1. Headphone mix is 100% app

Declarations of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules.


Changes or modifications not expressly approved by Apogee Electronics Corporation compliance could void the user's authority to operate the equipment.

Rating: 3.3-5V 100mA USB 2.0

Industry Canada Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matérial brouilleur du Canada.

Declaration of Conformity – CE
Apogee Electronics Corporation hereby declares that the product, JAM Plus, to which this declaration relates, is in material conformity with the following standards or other normative documents:

(EN50081-1/EN55022; 1995) and (EN50082-1/IEC 801-2, 3, 4; 1992) following the provisions of: (73/23/EEC – Low Voltage Directive) and (89/336/EEC – EMC Directive)

Declaration of Conformity – CE
Apogee Electronics Corporation hereby declares that the product, JAM Plus, to which this declaration relates, is in material conformity with the following standards or other normative documents:

(EN50081-1/EN55022; 1995) and (EN50082-1/IEC 801-2, 3, 4; 1992) following the provisions of: (73/23/EEC – Low Voltage Directive) and (89/336/EEC – EMC Directive)

Declaration of Conformity – Japan
Apogee Electronics Corporation hereby declares that JAM Plus, to which this declaration relates, is in material conformity with the VCCI Class A standard.

Declaration of Conformity – Australia
Apogee Electronics Corporation hereby declares that the JAM Plus is in material conformity with AN/NZS standard requirements.

Use of the "Made for iPhone", "Made for iPad", and "Made for iPod" badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
