Apogee Jam+ User Manual

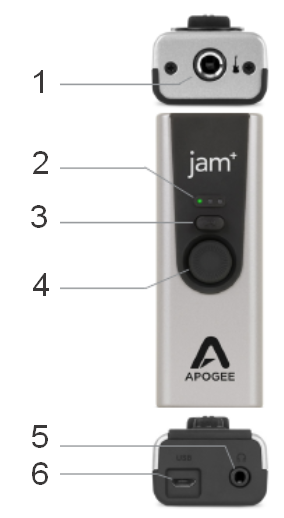

Product Tour Apogee Jam+

  1. 1/4" Instrument input (Input Instrumen 1/4")
  2. 3 multicolor LEDs for status, input level and Blend mode indication (3 LED multiwarna untuk status, level input dan indikasi mode Blend)
  3. Headphone output Blend control for low latency recording (Kontrol Blend output Headphone untuk perekaman latensi rendah)
  4. Input gain adjustment knob Push to select Overdrive or Clean mode (Kenop penyesuaian gain input Tekan untuk memilih mode Overdrive atau Clean)
  5. 1/8" Headphone or powered speaker output (Output Headphone atau speaker bertenaga 1/8")
  6. USB port (Port USB)

In The Box (Di Dalam Kotak)

  • Apogee Jam+
  • Instruksi unduh perangkat lunak BIAS FX JAM
  • User's Guide (Panduan Pengguna)
  • Warranty Booklet (Buku Garansi)
  • Lightning cable (Kabel Lightning)
  • USB cable (Type C) (Kabel USB (Tipe C))
  • USB cable (Type A) (Kabel USB (Tipe A))

Status & Input Level Indicator LEDs (LED Indikator Status & Level Input)

  1. Single Blue = Powered but not connected to recording software (Biru Tunggal = Menyala tetapi tidak terhubung ke perangkat lunak perekaman)
  2. Single Green = Connected and working with recording software (Hijau Tunggal = Terhubung dan bekerja dengan perangkat lunak perekaman)
  3. Green left-to-right = Audio level meter with Clean mode on (Hijau dari kiri ke kanan = Meter level audio dengan mode Clean aktif)
  4. Green + Orange = Approaching maximum input level (Hijau + Oranye = Mendekati level input maksimum)
  5. Red = Input Overload, Gain should be lowered (Merah = Input Overload, Gain harus diturunkan)
  6. Orange left-to-right = Audio level meter with Overdrive mode on (Oranye dari kiri ke kanan = Meter level audio dengan mode Overdrive aktif)
  7. Single White = Blend on, returns to input level after 1 second (Putih Tunggal = Blend aktif, kembali ke level input setelah 1 detik)

Connecting to the Computer/iOS Apogee Jam+ (Menghubungkan ke Komputer/iOS Apogee Jam+)

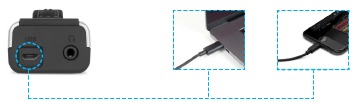

  1. Connect cable (Hubungkan kabel)
    Hubungkan kabel
  1. Open a recording program and set up track (Buka program perekaman dan siapkan trek)
    Buka program perekaman dan siapkan trek Langkah 1

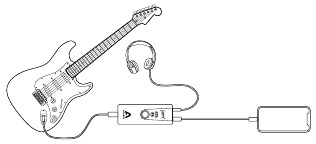

    Buka program perekaman dan siapkan trek Langkah 2
  1. Connect Headphones to Jam+ (Hubungkan Headphone ke Jam+)
    Hubungkan Headphone ke Jam+
  1. Adjust Gain & Blend (Sesuaikan Gain & Blend)
  2. Record (Rekam)
  3. Use volume buttons on computer/iOS device to adjust playback level (Gunakan tombol volume pada komputer/perangkat iOS untuk menyesuaikan level pemutaran)

Indicators and Controls Apogee Jam+ (Indikator dan Kontrol Apogee Jam+)

Input Gain Knob (Kenop Gain Input)

  1. Turn Input Gain knob to adjust input signal level (Putar kenop Input Gain untuk menyesuaikan level sinyal input)
    Kenop Gain Input Langkah 1
  2. Less Gain (Kurang Gain) More Gain (Lebih Gain)

    Clean mode (Mode Clean)


    Overdrive mode (Mode Overdrive)
  3. LEDs progressively light green or orange to indicate the gain setting (LED secara bertahap menyala hijau atau oranye untuk menunjukkan pengaturan gain)
  4. Push Gain knob to toggle Clean/Overdrive Mode. (Tekan kenop Gain untuk mengganti Mode Clean/Overdrive.)
    Kenop Gain Input Langkah 4

    Clean mode (Mode Clean)


    Overdrive mode (Mode Overdrive)

Blend Control Button (Tombol Kontrol Blend)

  1. Push Blend button to turn on low latency monitoring feature (Tekan tombol Blend untuk mengaktifkan fitur pemantauan latensi rendah)
    Tombol Kontrol Blend Langkah 1
  2. Press once to turn on (Tekan sekali untuk mengaktifkan)
    Tombol Kontrol Blend Langkah 2
  3. Center white LED indicates Blend on (LED putih tengah menunjukkan Blend aktif)
    Headphone mix is 50% app, 50% input (Campuran headphone adalah 50% aplikasi, 50% input)
  4. Press again to turn off (Tekan lagi untuk mematikan)
    Tombol Kontrol Blend Langkah 3

LEDs off indicates Blend feature is off (LED mati menunjukkan fitur Blend mati)

  1. Headphone mix is 100% app (Campuran headphone adalah 100% aplikasi)

Declarations of Conformity (Deklarasi Kesesuaian)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules.


Changes or modifications not expressly approved by Apogee Electronics Corporation compliance could void the user's authority to operate the equipment.

Rating: 3.3-5V 100mA USB 2.0

Industry Canada Notice (Pemberitahuan Industri Kanada)
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matérial brouilleur du Canada.

Declaration of Conformity – CE (Deklarasi Kesesuaian – CE)
Apogee Electronics Corporation hereby declares that the product, JAM Plus, to which this declaration relates, is in material conformity with the following standards or other normative documents:

(EN50081-1/EN55022; 1995) and (EN50082-1/IEC 801-2, 3, 4; 1992) following the provisions of: (73/23/EEC – Low Voltage Directive) and (89/336/EEC – EMC Directive)

Declaration of Conformity – CE (Deklarasi Kesesuaian – CE)
Apogee Electronics Corporation hereby declares that the product, JAM Plus, to which this declaration relates, is in material conformity with the following standards or other normative documents:

(EN50081-1/EN55022; 1995) and (EN50082-1/IEC 801-2, 3, 4; 1992) following the provisions of: (73/23/EEC – Low Voltage Directive) and (89/336/EEC – EMC Directive)

Declaration of Conformity – Japan (Deklarasi Kesesuaian – Jepang)
Apogee Electronics Corporation hereby declares that JAM Plus, to which this declaration relates, is in material conformity with the VCCI Class A standard.

Declaration of Conformity – Australia (Deklarasi Kesesuaian – Australia)
Apogee Electronics Corporation hereby declares that the JAM Plus is in material conformity with AN/NZS standard requirements.

Use of the "Made for iPhone", "Made for iPad", and "Made for iPod" badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

Registration Information (Informasi Pendaftaran)

Be sure to register your JAM Plus by completing the on-line registration form at our
Web site: www.apogeedigital.com/register

The benefits of registering include access to free, expert technical support by email or phone, important email notifications regarding new features and important updates, and new Apogee product notifications before they're announced to the public. (Manfaat pendaftaran termasuk akses ke dukungan teknis ahli gratis melalui email atau telepon, pemberitahuan email penting mengenai fitur baru dan pembaruan penting, dan pemberitahuan produk Apogee baru sebelum diumumkan kepada publik.)

Please address any inquiries to your dealer or directly to Apogee at:
APOGEE ELECTRONICS CORPORATION
1715 Berkeley St Santa Monica, CA 90404, USA
TEL: (310) 584-9394, FAX: (310) 584-9385

Web site:
www.apogeedigital.com

Knowledgebase:
www.apogeedigital.com/knowledgebase

Support:
www.apogeedigital.com/support

Merek

www.apogeedigital.com

© 2018, Apogee Electronics Corp. All Rights Reserved
PN: 0070-0012-0000 Rev. 2.0 | AN: 2740-0054-0000 Rev. 2.0
