Sony SS-V831ED/V531H/V331/V441H - Micro Satellite Speaker System Manual

Features

The instructions in this manual are for SS-V831ED, SSV531H, SS-V331 and SS-V441H Sony Micro Satellite Speaker Systems.

If you add this speaker to SA-VE835ED, SA-VE535H, SAVE335 and SA-VE445H, you can enjoy the surround effect as a 6.1 channel speaker system. Please refer to the manual provided for SA-VE835ED, SA-VE535H, SAVE335 and SA-VE445H when you connect this speaker to the other speakers of SA-VE835ED, SA-VE535H, SAVE335 and SA-VE445H.

Any difference in operation is clearly indicated in the text, for example, "SS-V831ED only".

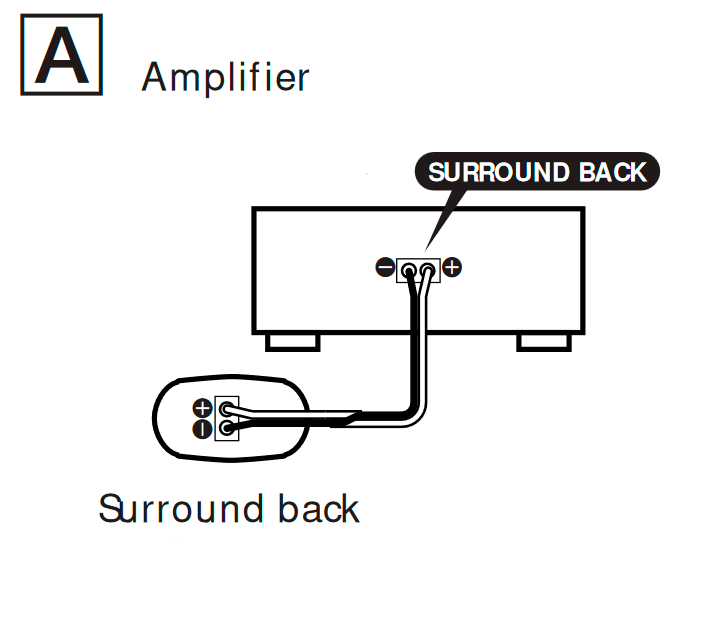

Hooking up the speaker

Connect the speaker to the speaker output terminals of an amplifier.
Make sure power to all components (included the subwoofer) is turned off before starting the hook-up.

Notes

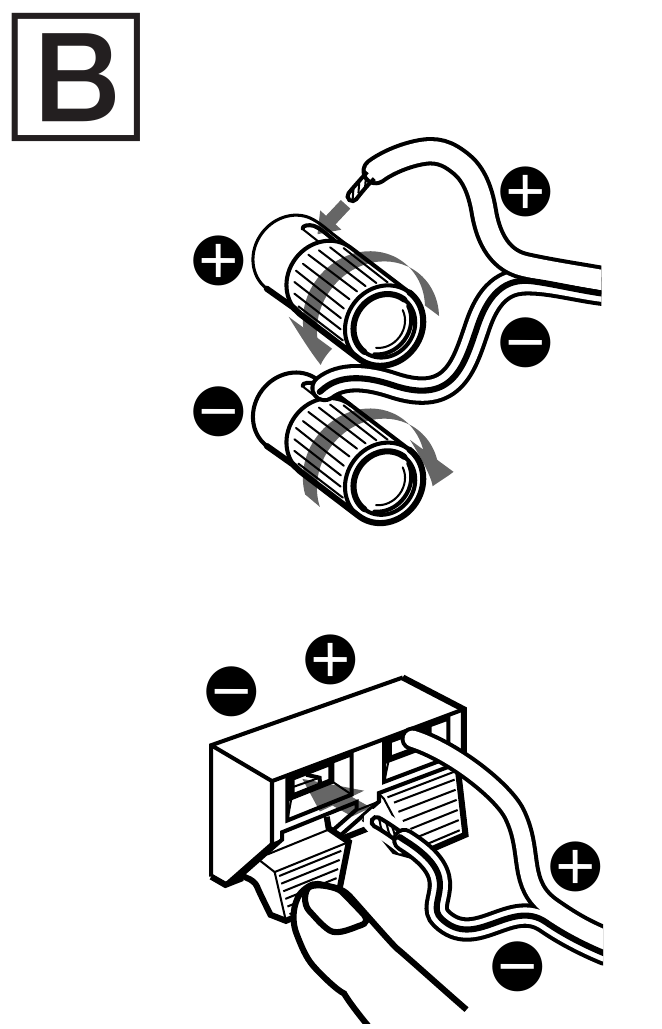

• Make sure the plus (+) and the minus (–) terminals on the speakers are matched to the corresponding plus (+) and minus (–) terminals on the amplifier.
• Be sure to tighten the screws of the speaker terminals securely as loose screws may become a source of noise.
• Make sure all connections are firm. Contact between bare speaker wires at the speaker terminals may cause a short-circuit.
• For details regarding the connections on the amplifier side, refer to the manual that was provided with your amplifier.

Tip

Black or black striped wires are minus (–) in polarity, and should be connected to the minus (–) speaker terminals.

Positioning the speakers

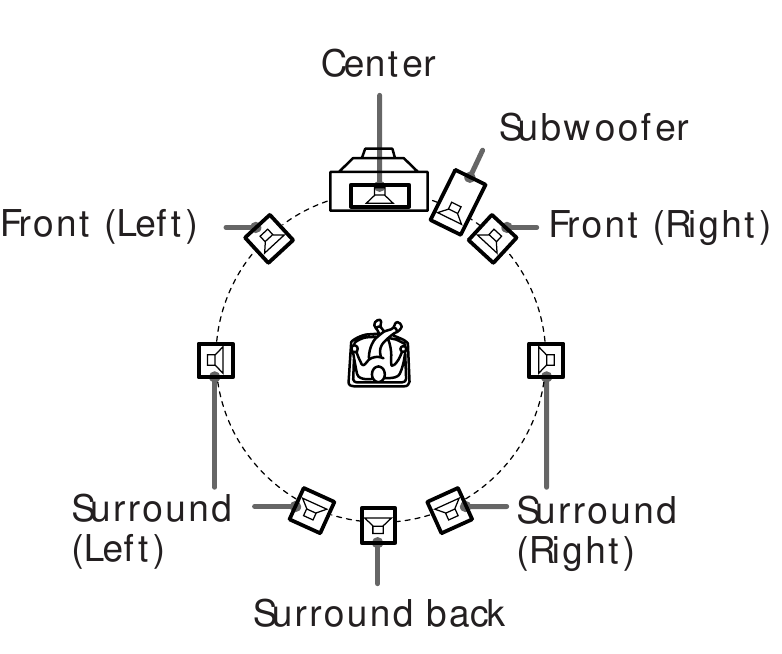

Location of each speaker

Positioning the speaker

(for SS-V831ED only)

Attach the speaker to supplied speaker stand and place them at their optimum locations.
For details on the location of the speaker, see "Location of each speaker."

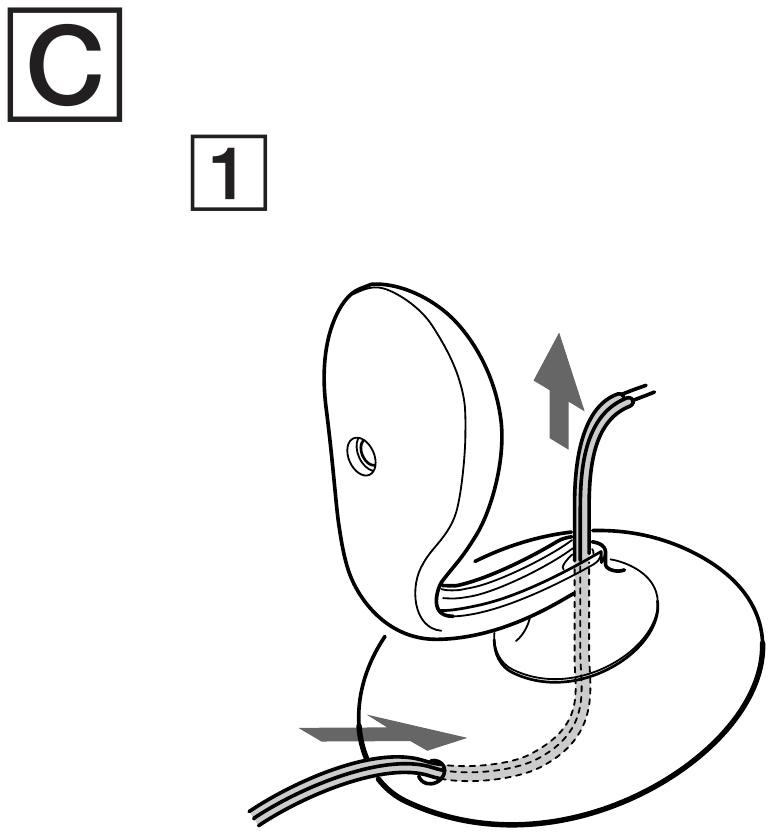

1. Pass the speaker cord into the hole on the back of the stand and out from the hole at the centre of the stand.

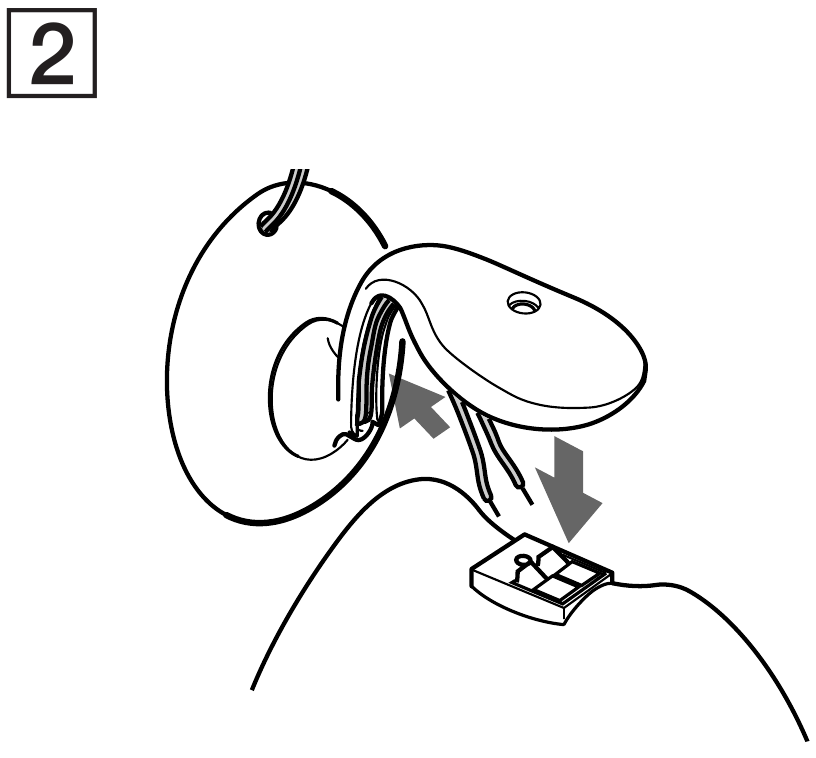

2. Connect the speaker cord to the speaker.

   Note
   Be sure to seat the speaker cord correctly in the groove of the stand and ensure that it doesn't protrude or get crimped

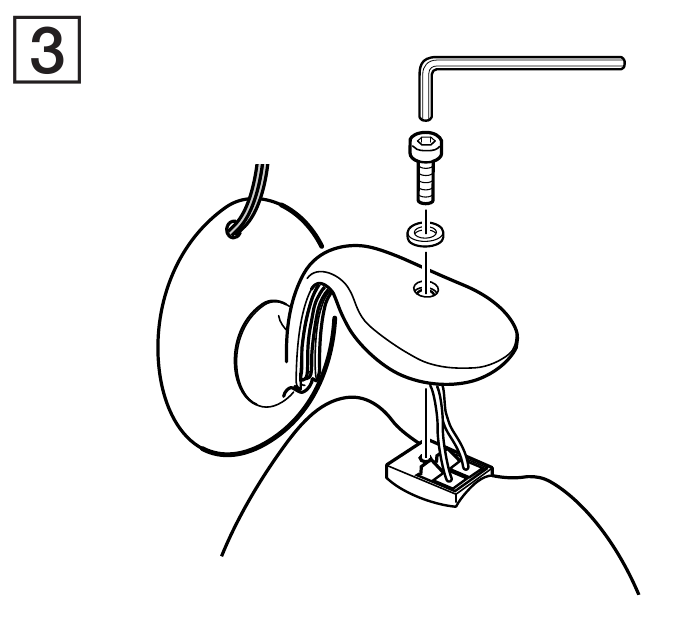

3. Secure the speaker in the stand with the supplied screw and washer.


Notes

• Do not remove the supplied speaker grille from the speaker while attaching the speaker to the speaker stand.
• Do not touch or press tweeter's cover on the centre of the speaker.

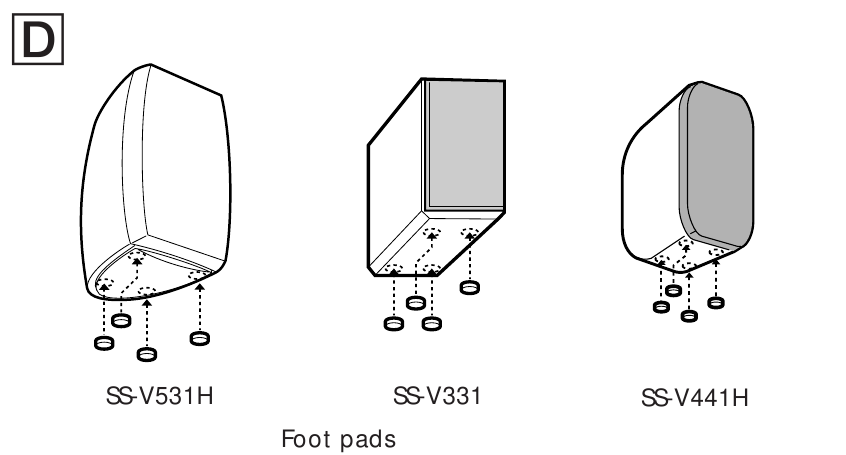

Setting the speaker

(for SS-V531H/V331/V441H only) (D)
To prevent speaker vibration or movement whilst listening, attach the supplied foot pads to the speaker.
