INSTALLATION INSTRUCTIONS

LOCATION

Two people should be used when moving the appliance.
Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
Place the appliance on a floor that is strong enough to support it when it is fully loaded.
Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
Do not use the appliance near water, for example in a wet basement or near a sink.
Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
This appliance is 52.6 cm (20.7 inches) wide by 84 cm (33 inches) high by 53 cm (20.9 inches) deep. Make sure that you leave the minimum amount of space between the appliance and all surrounding walls and vents.
Allow 12.7 cm (5 inches) of space between the back, sides and top of the appliance and all adjacent walls.
This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.

LEVELING INSTRUCTIONS

There is an adjustable leg on the bottom of the appliance that can be turned up or down to ensure that the appliance is level.

Turn the leveling leg counter-clockwise as far as it will go, until the top of the foot is touching the bottom of the cabinet.
Slowly turn the leveling leg clockwise until the appliance is level.

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

To change the direction of the door swing, follow the instructions above.

OPERATING INSTRUCTIONS

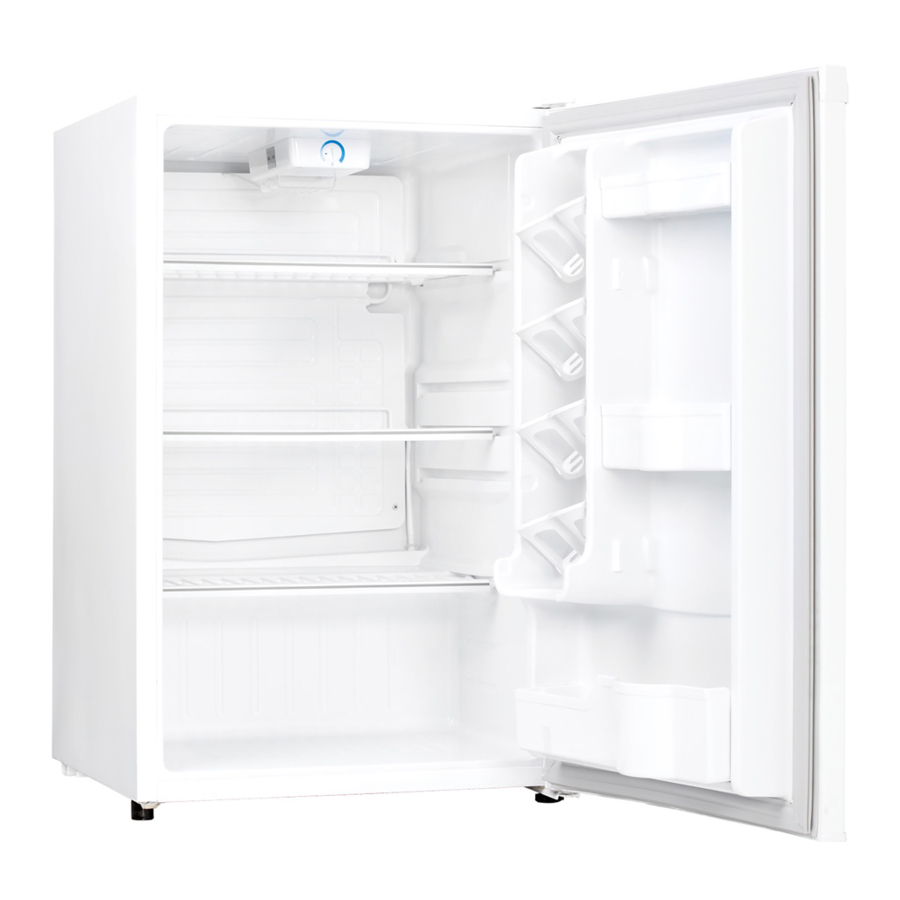

PRODUCT FEATURES

Interior Light and Thermostat Dial: Temperature can be adjusted by turning the thermostat dial on the inner ceiling of the appliance.
Adjustable Shelves
Defrost Water Outlet: Ice that forms inside the appliance will automatically thaw and drain through this outlet.
CANSTOR Door Liner: Holds 355ml cans of pop, juice, or beer.
Bottle Rack: For tall, small and medium cans or jars.
Magnetic Gasket: Tight fitting door seal keeps all the cooling power locked inside.
Leveling Legs: Adjust so the unit is level.

Ensure that the door is fully closed when the appliance is in operation. Failure to fully close the door can lead to excessive condensation and potential water damage to flooring under the appliance. Danby will not be responsible for damages from misuse.
This refrigerator is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled, e.g., garages, porches, vehicles, etc.

TEMPERATURE SELECTION

The temperature of the appliance can be adjusted by turning the thermostat dial.

The thicker, darker part of the blue line is the coldest setting.
The thinner, lighter part of the blue line is the warmest setting.
The "O" position will turn off the cooling function.

Internal temperature of the appliance can vary based on ambient temperature, the quantity of items stored and how frequently the door is opened.

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent.
Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
Clean the outside with a soft, damp cloth and some mild detergent.
It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.
Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.

DEFROST

This appliance is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

VACATION

Short vacations: Leave the appliance operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

MOVING

Make sure the appliance is empty.
Secure the shelves with tape.
Secure the door with tape.
Turn the adjustable foot up to the base to avoid damage.
Protect the outside of the appliance with a blanket or similar item.
Be sure the appliance stays in the upright position during transportation.
If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to internal components.

FREQUENTLY ASKED QUESTIONS

What are the watts and amps

Please refer to the rating plate located on the back of the cabinet.

How much does it cost to run the freezer

Please refer to the energy guide.

Can I use an extension cord

No, an extension cord may not be used.

I am having trouble opening the door

The refrigerator door may be difficult to open immediately after closing it. This is normal and is due to the pressure difference between the cold interior of the refrigerator and the warm air that has just entered the refrigerator when it was opened. The pressure will equalize within a few minutes.

I had my fridge on its back side to bring it home. Can I use it right away?
Please allow it to sit upright for 6 hours before plugging it in.

The appliance smells like new plastic

It is common for new appliances to have a slight plastic smell. Ensure that you have removed all packing material from the fridge. Clean the inside of the cabinet by following the cleaning instructions. Place an open box of baking soda in the refrigerator to absorb any remaining odour.

TROUBLESHOOTING

No power

A fuse may be blown or the circuit breaker tripped
Plug not fully inserted into the wall outlet

Internal temperature not cold enough

Temperature setting is too warm
The door is not shut properly or opened excessively
Recently added a large quantity of warm food to the cabinet
Close proximity to heat source or direct sunlight
Ambient temperature or humidity is very high

The unit runs continuously

Temperature setting is too cold
The door is not shut properly or opened excessively
Recently added a large quantity of warm food to the cabinet
Close proximity to heat source or direct sunlight
Ambient temperature or humidity is very high

The unit makes a gurgling noise when operating

This noise is completely normal. The refrigerant inside the appliance will make a gurgling noise as it changes from a liquid to a gas and back again.

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
Dispose of properly in accordance with federal or local regulations.
Follow handling instructions carefully.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Children should be supervised to ensure that they do not play with the appliance.

Risk of child entrapment. Before throwing away an old appliance:

Remove the door or lid.
Leave shelves in place so that children may not easily climb inside.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offices and other working environments;
Farm houses and by clients in hotels, motels and other residential type environments;
Bed and breakfast type environments;
Catering and similar non-retail applications.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.
This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.
If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

SAVE THESE INSTRUCTIONS!
