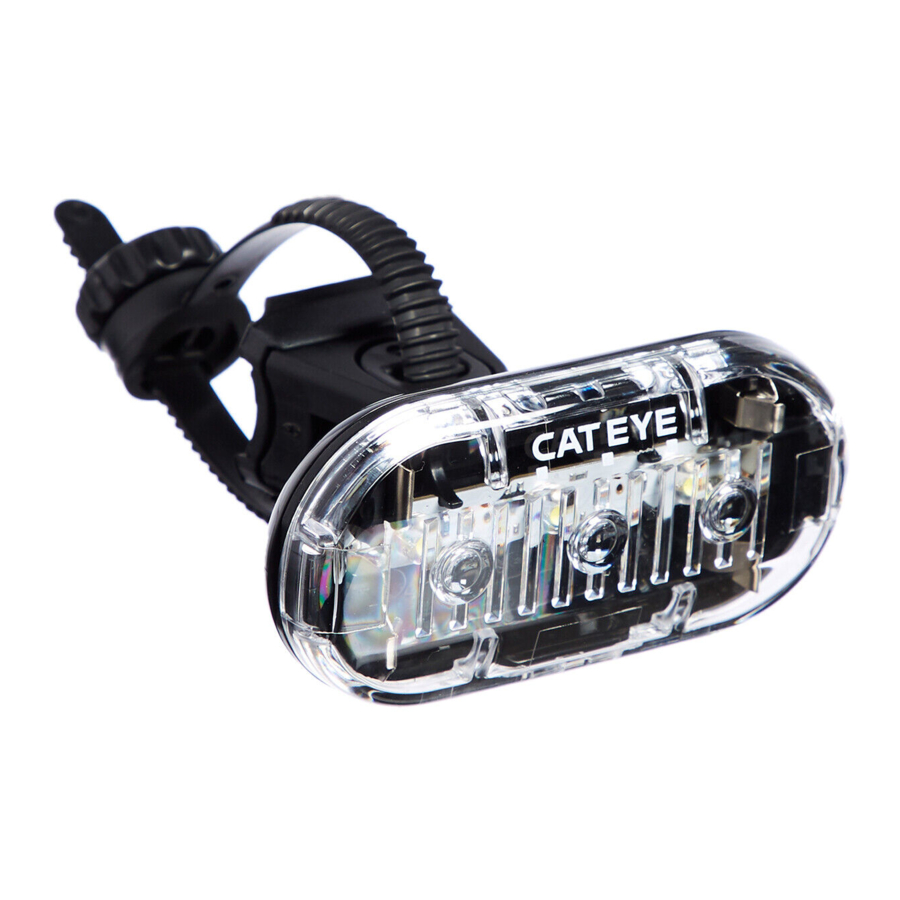

Cateye OMNI 3, TL-LD135, TL-LD135-R, TL-LD155-R Manual
INTRODUCTION
Before using the product, please thoroughly read this manual and keep it for future reference.
What's in the Box
HOW TO INSTALL BATTERY
- Using a coin to remove the lens from the light as shown in the drawing. (1 - 2)
- Insert the battery according to the mark stamped on the body, and then fi t the lens firmly to the body. (3)
- Be sure to install batteries in the correct direction.
- Install the rubber gasket correctly to maintain waterproof features.
- Remove and store batteries when you will not use the light for a long period of time. Otherwise, batteries may leak liquid, which may result in failure.
HOW TO USE
Use the switch to turn the power ON or OFF and to change the lighting mode.
* The light will turn on in the lighting mode previously selected.
| Standard operating time | TL-LD135-R | TL-LD155-R |
| Rapid | Approx. 200 h | Approx. 120 h |
| Flash | Approx. 150 h | Approx. 90 h |
| Constant | Approx. 100 h | Approx. 60 h |
HOW TO MOUNT TO A BICYCLE
- Mount the bracket to the seatpost or the seatstay as shown. ( 1 - 3 )
- Slide the light onto the bracket until it "clicks" into place. ( 4 )
- To remove the light, press the lever ( 5 ) and slide it off.
- Be sure to tighten the dial by hand. When you tighten it too hard with a tool, the screw thread may be stripped.
- Check the bracket frequently to be sure it is properly tightened at all times.
- Round off the cut edge of the bracket strap to prevent injury.
WHEN USING THE CLIP
- Mount the clip to the belt as shown. ( 1 )
- Insert the light to the clip until it clicks. ( 2 )
- To remove, press down the clip from the top while holding the light. ( 3 )
Do not mount the clip to the saddlebag. It may come off by vibration of the bicycle.
SPECIFICATIONS
| Battery | AAA dry-cell battery x 2 |
| Operating time (When using alkaline batteries) | |
| TL-LD135-R | Rapid: Approx. 200 hours, Flash: Approx. 150 hours, Constant: Approx. 100 hours |
| TL-LD155-R | Rapid: Approx. 120 hours, Flash: Approx. 90 hours, Constant: Approx. 60 hours |
| Temperature range: 14˚F – 104˚F (-10˚C – 40˚C) | |
| Dimensions/weight | |
| TL-LD135-R | 1-27/64" x 2-61/64" x 55/64" (36 x 75 x 21.9 mm) / 1.47 oz (41.6 g) (Including batteries) |
| TL-LD155-R | 1-27/64" x 2-61/64" x 55/64" (36 x 75 x 21.9 mm) / 1.47 oz (41.8 g) (Including batteries) |
* The specifications and design are subject to change without notice.
| SPARE PARTS | OPTION PARTS | |||
| 5342280 FlexTight™ bracket (SP-11)  | 5440900N Clip (C-1N)  | 5342410 FlexTight™ bracket (SP-12-R)  | 5445620 Rear rack bracket  | 5446510 RM-1 bracket  |
Customer Service
Please register your CatEye product on the website:
http://www.cateye.com/en/support/regist/
CATEYE Customer Service Section
[For US Customers]
Phone: 303.443.4595
Toll Free: 800.5CATEYE
Fax: 303.473.0006
E-mail: service@cateye.com
Safety
- Before your trip, please make sure the light is firmly mounted to the bracket, it lights up, and the light is not blocked by baggage, etc.
- Stop your bicycle to operate the switch.
- This unit is not totally waterproof. Please wipe and dry it completely after using in rain. Otherwise, it may cause failure.
- If the light unit or parts become dirty with mud, etc., clean with a soft cloth which is moistened with mild soap. Never apply paint thinner, benzine or alcohol; damage will result.
