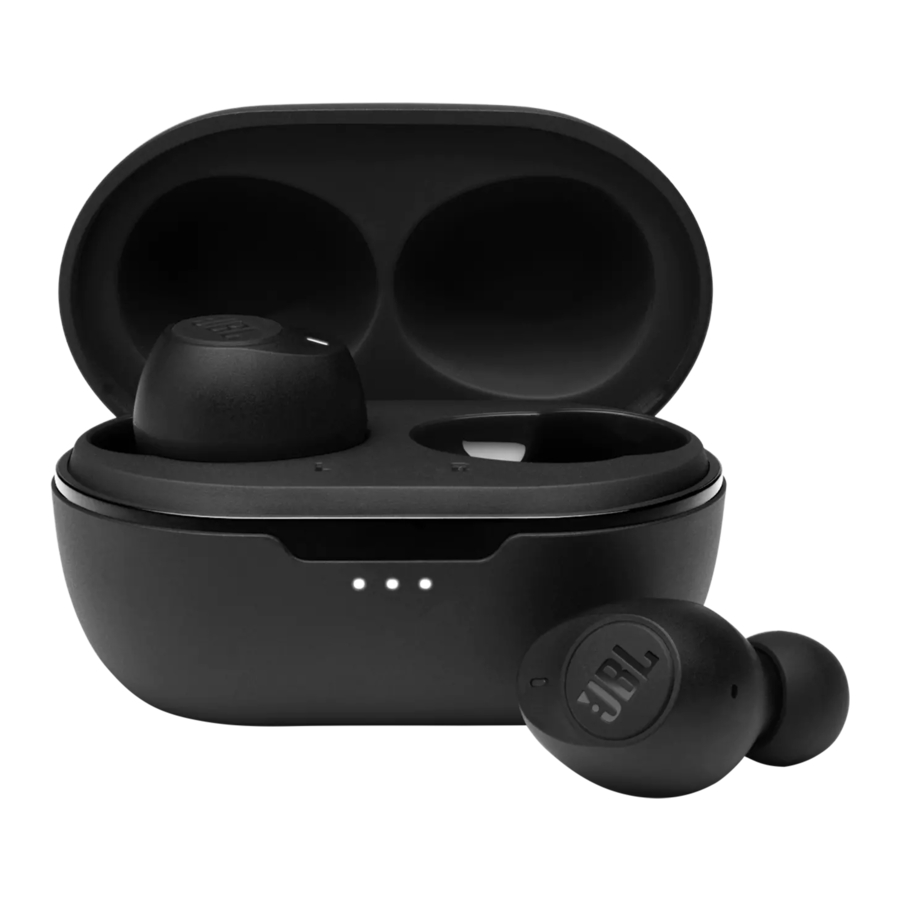

JBL TUNE 115TWS - Panduan Memulai Cepat Headphone
Isi
APA YANG ADA DI DALAM KOTAK
CARA MEMAKAI
PENGGUNAAN PERTAMA KALI
HIDUPKAN & SAMBUNGKAN
PEMASANGAN
MATIKAN
KONTROL MANUAL
PERINTAH TOMBOL
- Stereo Mode (Mode Stereo)
![PERINTAH TOMBOL]( "JBL - TUNE 115TWS - PERINTAH TOMBOL")
![]()
Pergantian otomatis yang mulus - Mono Mode (Mode Mono)
![]()
Pergantian otomatis yang mulus
PENGISIAN DAYA
PERILAKU LED
SPESIFIKASI TEKNIS
| Model: | TUNE115TWS |
| Driver size: | 5.8 mm / 0.23" Dynamic driver |
| Power supply: | 5 V  0.5 A |
| Weight: | 51.8 g / 0.114 lbs |
| Earpiece: | 5.15 g / 0.0114 lbs / pc (10.3 g / 0.0227 lbs combined) |
| Charging case: | 41.5 g / 0.0915 lbs |
| Headset battery type: | Lithium-ion Battery (55 mAh / 3.7 V) |
| Charging case battery type: | Lithium-ion Battery (410 mAh / 3.8 V) |
| Charging time: | < 2 hrs from empty |
| Music playtime with BT on: | up to 6 hrs |
| Frequency Response: | 20 Hz – 20 kHz |
| Impedance: | 14 ohm |
| Maximum SPL: | 95 dB |
| Sensitivity: | 108 dB SPL@1 kHz / 1 mW |
| Microphone sensitivity: | -38 dBV@1 kHz / Pa |
| Bluetooth version: | 5.0 |
| Bluetooth profile version: | A2DP 1.3, AVRCP 1.6, HFP 1.7 |
| Bluetooth transmitter frequency range: | 2.4 GHz - 2.4835 GHz |
| Bluetooth transmitter power: | < 12 dBm |
| Bluetooth transmitter modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Maximum operation temperature: | 45°C |
Unduh manual
Di sini Anda dapat mengunduh versi pdf lengkap manual, mungkin berisi instruksi keselamatan tambahan, informasi garansi, aturan FCC, dll.
Unduh JBL TUNE 115TWS - Panduan Memulai Cepat Headphone
