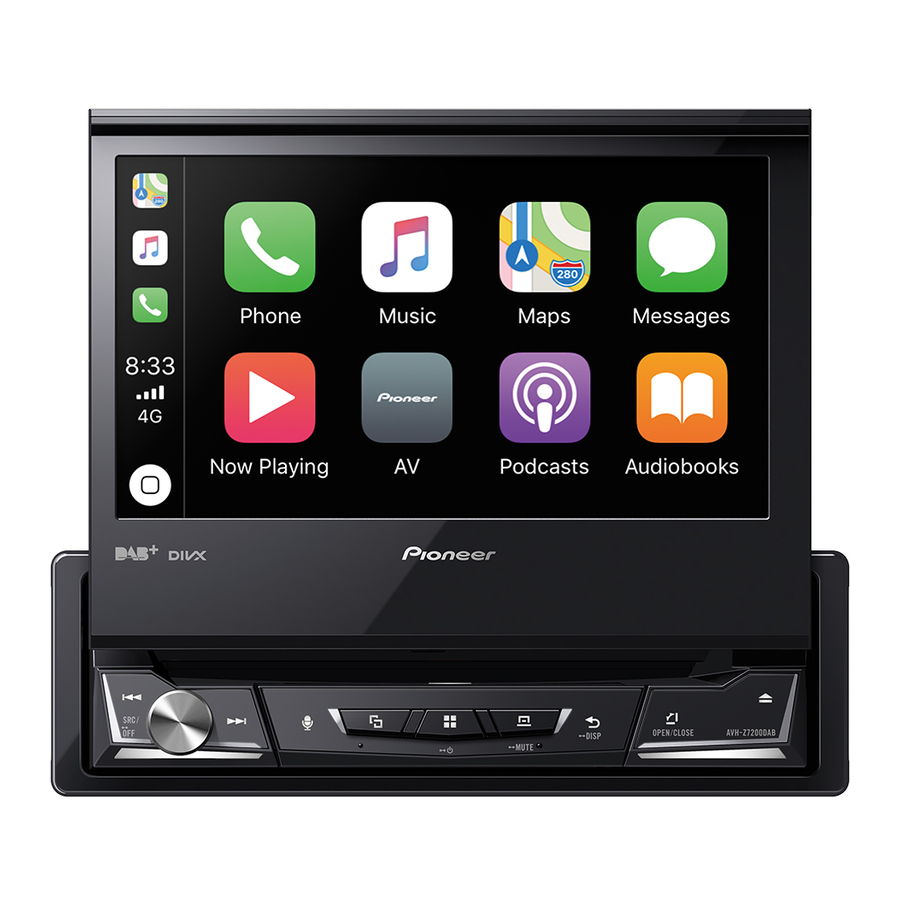

Pioneer AVH-Z7200DAB - RDS AV Receiver Quick Start Guide

Contents

Introduction

This guide is intended to guide you through the basic functions of this unit.

For details, please refer to the Operation manual stored on the website. http://www.pioneer-car.eu

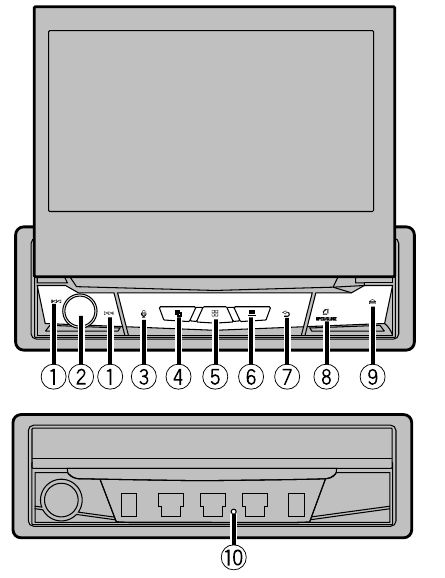

		Return to the previous track (chapter) or go to the next track (chapter) Perform fast reverse or fast forwards Answer or end a call
	Volume/SRC/ OFF	Turn to adjust the volume Cycle through all the available sources Turn the source off
		Activate the voice recognition mode
		Switch between the Application screen and the AV operation screen Switch to the camera view mode
		Display the top menu screen Power off
		Display the menu bar Mute or unmute
		Display the top menu screen or back to previous screen Turn off the display
	OPEN/CLOSE	Open the LCD panel To close the LCD panel, press again
		Eject a disc
	RESET	Reset the microprocessor

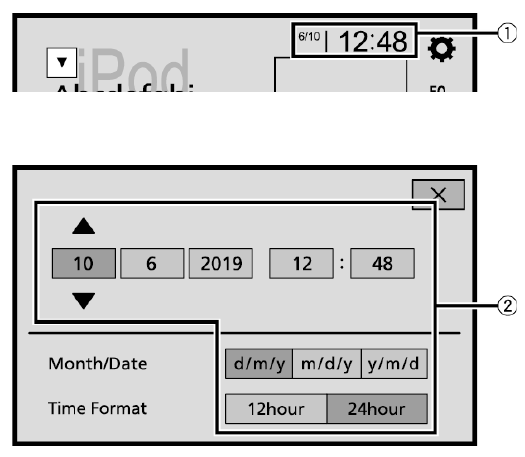

	Switch to clock adjustment display
	Adjust the clock

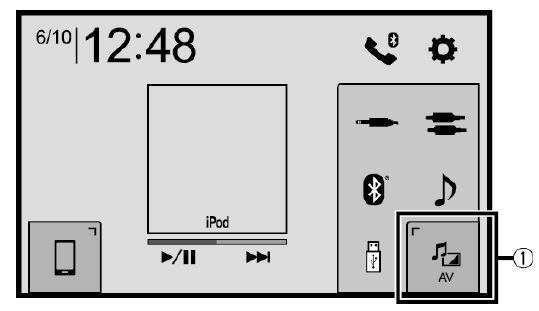

Display the AV source selection screen and select a source

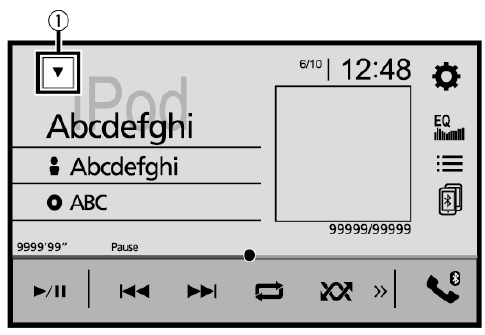

Display the source list and select a source

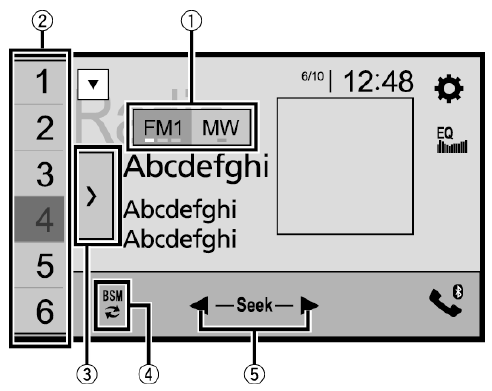

	Select a band
	Recall the preset channel stored to a key from memory Store the current broadcast frequency to a key
	Display the preset channel list
	Store the strongest broadcast frequencies
	Tune into the next station Start seek turning

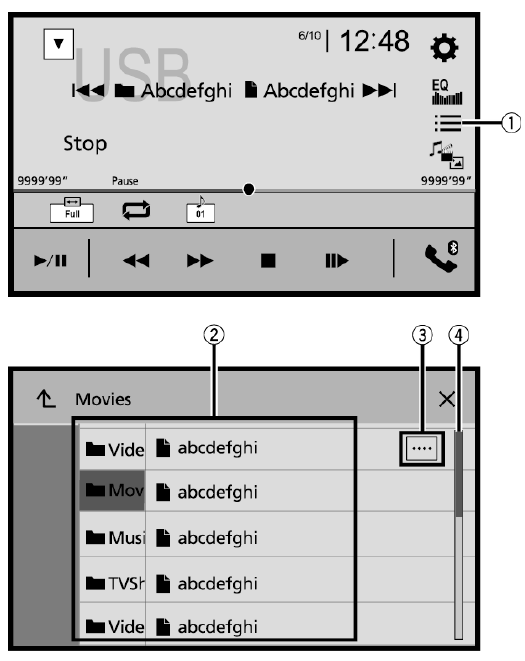

	Display the playlist screen
	Select a list title that you want to play
	Scroll the list title or category name
	Scroll the list

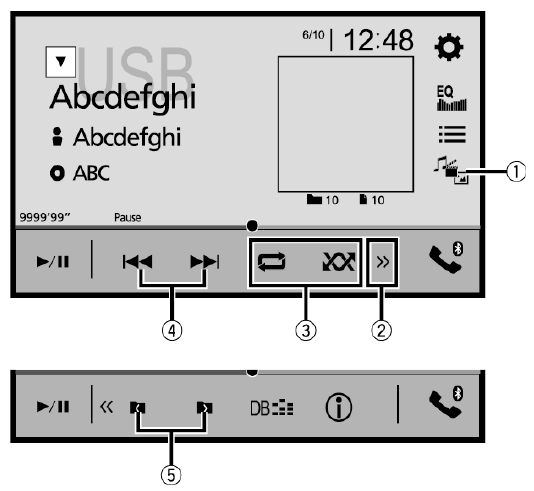

	Switch between media file types
	Display the hidden function bar
	Set the function for playing audio
	Skip files forwards or backwards
	Select a folder

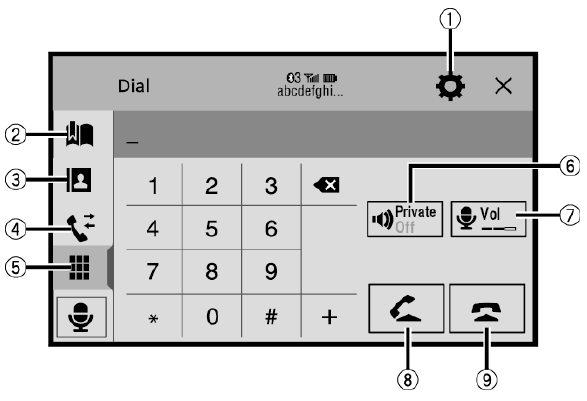

	Display the Bluetooth connection menu
	Display the preset dial screen
	Switch to the phone book mode
	Switch to the call history list
	Enter the phone number directly
	Turn private mode on and off
	Adjust the listening volume
	Accept an incoming call
	End a call
