Corsair M75 WIRELESS Manual

Contents

1 GETTING TO KNOW YOUR PRODUCT
2 CHARGING THE DEVICE
3 SETTING UP 2.4GHz SLIPSTREAM WIRELESS
4 SETTING UP BLUETOOTH
5 ON-THE-FLY DPI TUNING
6 MOUSE STATUS/DPI SETTINGS AND INDICATIONS
7 SWAPPING YOUR SIDE BUTTONS
8 BATTERY REMOVAL INFORMATION
9 References
10 Download manual
11 In Other Languages

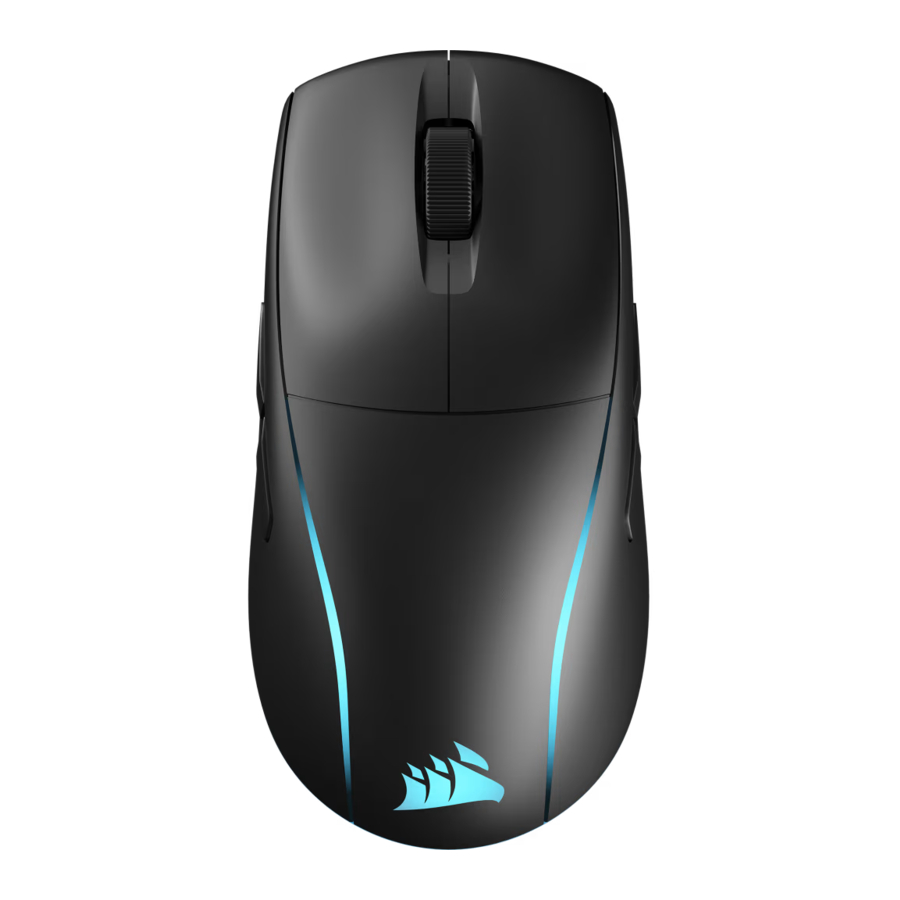

GETTING TO KNOW YOUR PRODUCT

Please use 2.4 GHz mode or wired mode to configurate on iCUE.

LEFT MOUSE BUTTON
RIGHT MOUSE BUTTON
MIDDLE CLICK/SCROLL WHEEL
RGB INDICATOR
MARKSMAN OPTICAL SENSOR
USB CHARGING/DATA PORT
100% VIRGIN-GRADE PTFE MOUSE FEET
POWER/WIRELESS MODE BUTTON
USB WIRELESS RECEIVER STORAGE
DPI BUTTON
LEFT FORWARD BUTTON
LEFT BACK BUTTON
RIGHT FORWARD BUTTON
RIGHT BACK BUTTON
USB WIRELESS RECEIVER
USB CHARGING/DATA CABLE
LEFT/RIGHT SIDE BUTTON COVERS

CHARGING THE DEVICE

The M75 WIRELESS gaming mouse must be fully charged before its first use.

Connect the mouse to an available USB 2.0 or 3.X port on your PC with the USB CHARGING/DATA CABLE (P).
The RGB INDICATOR (D) on the mouse will begin pulsing green to denote battery charging and will turn solid green when charging is complete.

SETTING UP 2.4GHz SLIPSTREAM WIRELESS

Hyper-fast sub-1ms wireless connection is designed for no-compromise gaming grade performance.

Connect the USB WIRELESS RECEIVER (O) to an available USB 2.0 or 3.x port located on the front panel of your PC or nearby USB port.
Power on your mouse by holding down on the POWER/WIRELESS MODE BUTTON (H) for 5 seconds, or until the RGB INDICATOR (D) lights up.
The RGB INDICATOR (D) will blink white and turn solid white when connected.
If the RGB INDICATOR (D) is blue, press the POWER/WIRELESS MODE BUTTON (H) once to swap to 2.4GHz mode.
Download the iCUE software from https://www.corsair.com/icue.
Run the installer program and follow instructions for installation.

If reconnection is required, initiate USB receiver pairing via USB cable and reconnect on the iCUE software settings menu.

SETTING UP BLUETOOTH

Bluetooth wireless is best for everyday computing tasks, productivity, and office applications.

Initiate Bluetooth pairing on your Bluetooth 4.0 or higher enabled device.
Power on your mouse by holding down on the POWER/WIRELESS MODE BUTTON (H) for 5 seconds, or until the RGB INDICATOR (D) lights up.
The RGB INDICATOR (D) will blink blue and turn solid blue when connected.
If the RGB INDICATOR (D) is white, press the POWER/WIRELESS MODE BUTTON (H) once to swap to Bluetooth mode.
If the BT pairing device needs to be re-paired or changed, switch the BT mode first. Hold down on the POWER/WIRELESS MODE BUTTON (H) until RGB lights turn off. Press and hold DPI BUTTON (J) and POWER/WIRELESS MODE BUTTON (H) to turn on and enter BT Pairing mode, when the blue light blinks. Release DPI BUTTON (J) and POWER/WIRELESS MODE BUTTON (H).

*M75 WIRELESS can only be paired to one device. If you need to pair with another device, please enter re-pairing mode to initialise the pairing process.

Follow the instructions provided to successfully connect your device.

ON-THE-FLY DPI TUNING

M75 WIRELESS has a unique feature that enables you to adjust the current onboard DPI stage setting in 50 DPI increments without the software, so you can jump right into the action while you find the perfect sensitivity setting.

Function	Shortcut	RGB Indicator
Increase DPI by 50	Hold DPI BUTTON (J) and press LEFT FORWARD BUTTON (K)	Blinks Green
Decrease DPI by 50	Hold DPI BUTTON (J) and press LEFT BACK BUTTON (L)	Blinks Red
Reset DPI Stage	Hold DPI BUTTON (J) then both LEFT FORWARD BUTTON (K) and LEFT BACK BUTTON (L) buttons for 2 seconds	Blinks Yellow

*In left-hand mode, use RIGHT FORWARD BUTTON (M) and RIGHT BACK BUTTON (N) instead.

On-the-fly DPI changes are saved to the onboard memory and can be further adjusted in granular 1 DPI steps in iCUE. If iCUE is running, then changes are saved to the software profile directly.

MOUSE STATUS/DPI SETTINGS AND INDICATIONS

Wireless connection and battery status are communicated through the RGB INDICATOR (D). M75 WIRELESS comes preloaded with common competitive DPI settings which can be selected by pressing the DPI BUTTON (J) with the RGB INDICATOR (D) backlighting to reflect the current stage.

Battery Status	RGB Indicator
Battery charging	Pulsing Green
Battery critical, recharge required	Pulsing Red
Battery low, recharge soon	Blinking Red
Battery medium	Blinking Amber
Battery high	Blinking Green
Battery charged	Green
Wireless Status	RGB Indicator
2.4GHz wireless mode – pairing	Blinking White
2.4GHz wireless mode – paired	White
2.4GHz wireless mode – pairing failed	Pulsing White
BT wireless mode – pairing	Blinking Blue
BT wireless mode – paired	Blue
BT wireless mode – pairing failed	Pulsing Blue
DPI Stage Status	RGB Indicator
Stage #1 - 400 DPI	Red
Stage #2 - 800 DPI	Orange
Stage #3 - 1200 DPI	Yellow
Stage #4 - 1600 DPI	Green
Stage #5 - 3200 DPI	Blue

SWAPPING YOUR SIDE BUTTONS

Push the inner edges of LEFT FORWARD BUTTON (K) and LEFT BACK BUTTON (L) to pivot the buttons out.
Remove the buttons and replace with LEFT/RIGHT SIDE BUTTON COVERS (Q).
Do the same for the other side buttons to complete mouse hand change.

The M75 WIRELESS side buttons are set to a right-handed option by default. You can select your hand option using iCUE software and swap the side button functions to your preference.
Hand swap is also available through firmware mode.
Press and hold LEFT FORWARD BUTTON (K) and LEFT BACK BUTTON (L) for 5 seconds until the RGB INDICATOR blinks red lights to change to Left-handed mode.
Press and hold RIGHT FORWARD BUTTON (M) and RIGHT BACK BUTTON (N) for 5 seconds for Right-handed mode.

BATTERY REMOVAL INFORMATION

This product uses a rechargeable battery and safety guidelines must be followed in the event that the product is disabled for disposal and recycling. To safely remove the battery for disposal and recycling, follow the numbered steps with the above diagrams.

Remove Front and Rear Footpads
Remove x4 Screws
Remove Top Cover Assembly
Unplug Daughter Board Connector
Unplug Battery Connector
Remove Battery

The power delivered by the charger must be between min 2 Watts required by the radio equipment, and max 5 Watts in order to achieve the maximum charging speed.
