T-Fal Nescafe Dolce Gusto Manual

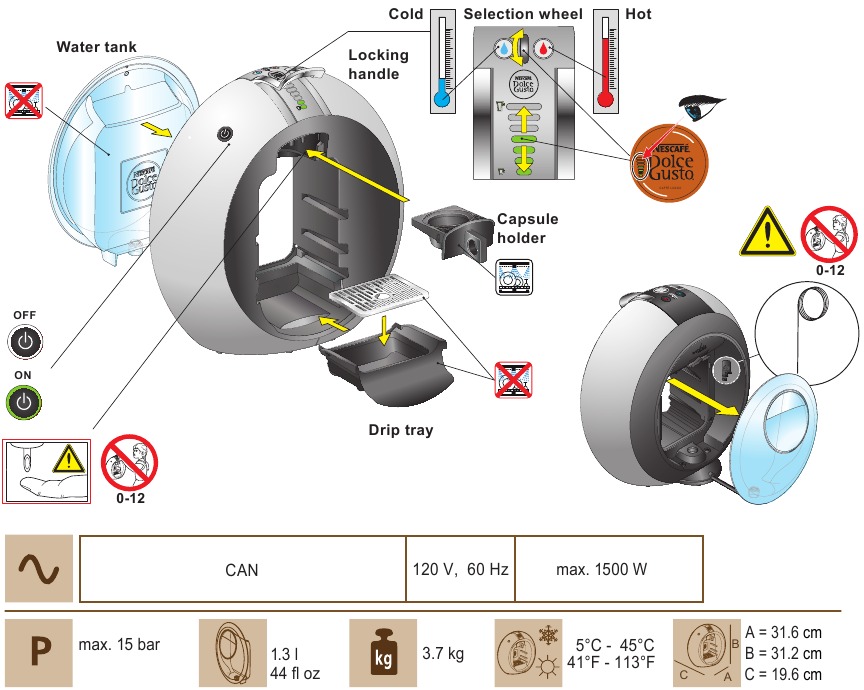

Overview

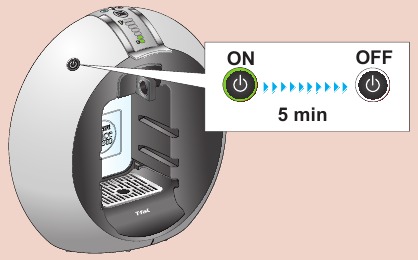

Auto shut-off function

STOP – Please read before using
Your NESCAFÉ Dolce Gusto machine by T-fal has an auto shut-off function which will automatically turn off the machine after 5 minutes if it is not used. This feature helps you save electricity by reducing the amount of power the machine draws while it is not in use and helps protect the life of your machine.
However, you can disable this function should you prefer that your machine stays on until you turn it off.

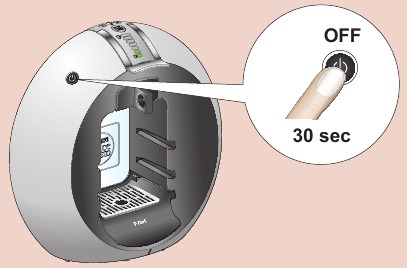

Disable auto shut-off function
When the machine is off, press and hold the power button for 30 seconds until the machine turns off again (ignore light signals and wait until power button is no longer illuminated).
The auto shut-off function is now disabled and the machine will stay on when you next press the power button. You can turn off the machine simply by pressing the power button again.
Unplugging the machine will restore the auto shut-off function.

SHOULD YOU HAVE ANY QUESTIONS OR REQUIRE ANY ASSISTANCE, PLEASE CONTACT THE NESCAFÉ DOLCE GUSTO CUSTOMER SERVICE AT: 1-888-809-9267 (CAN)

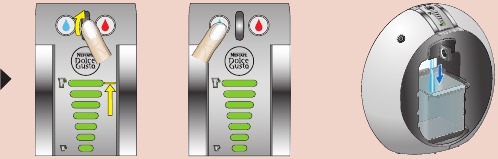

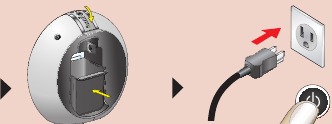

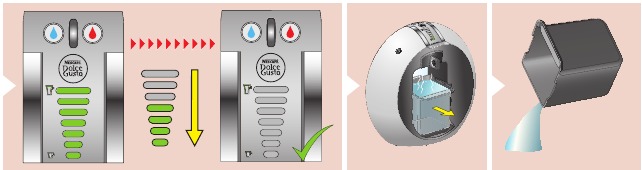

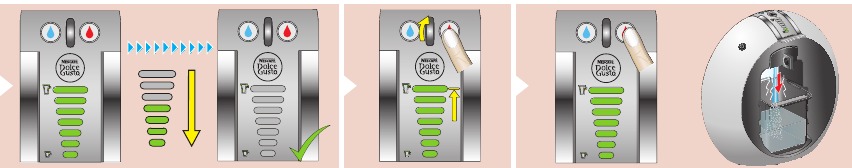

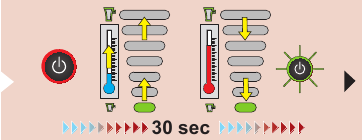

First use

Insert drip tray into bottom of machine.

Remove the drip tray and insert the capsule bin.

Push power button, wait until light stops flashing.

Refill the water tank and you are ready to go.

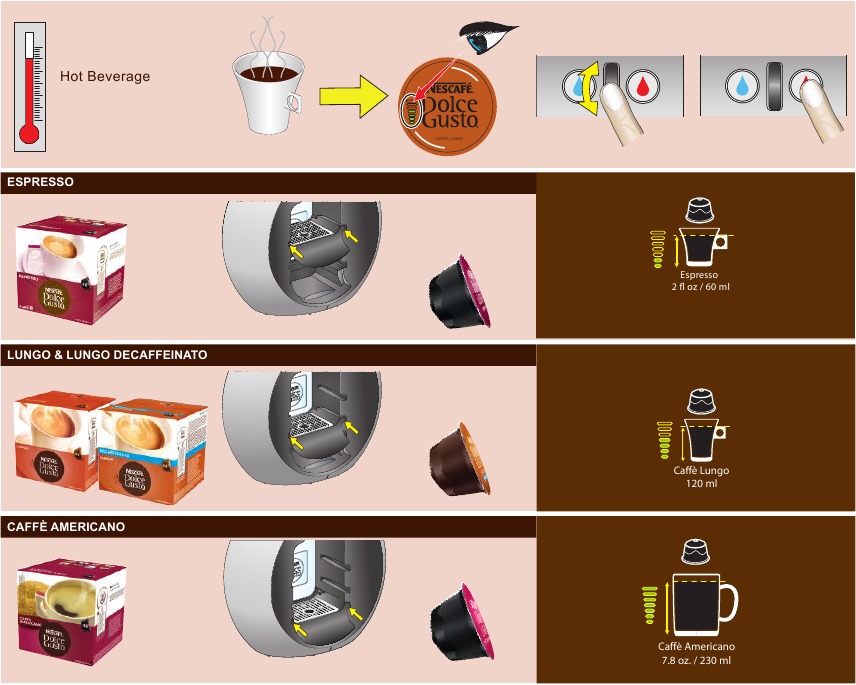

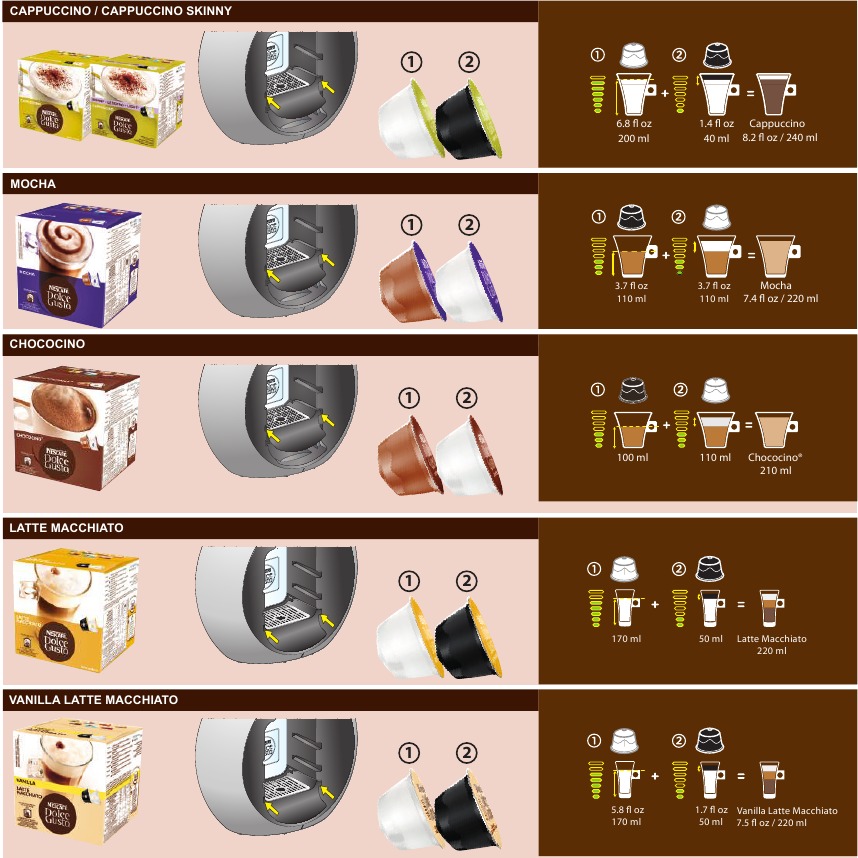

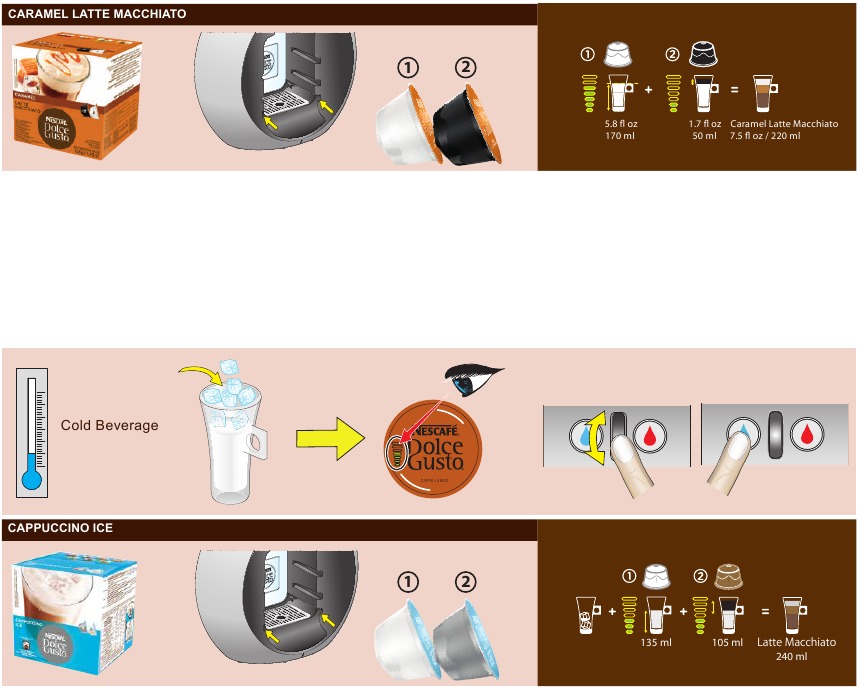

Product range

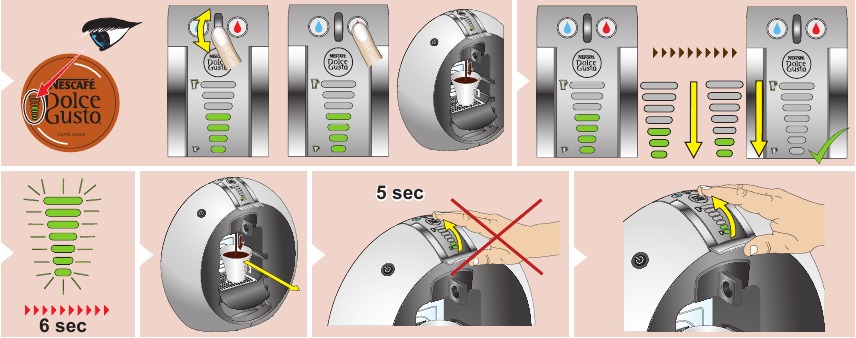

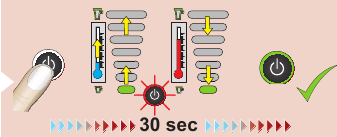

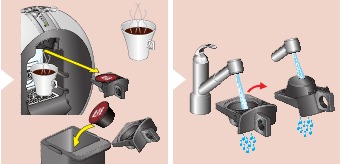

Preparing a beverage

Push power button, wait until light stops flashing.

Adjust the drip tray to the height of your beverage.

Slide in capsule holder while locking handle is up.

To STOP preparation earlier, press any button.

Do not fill tank with hot water.

Do not open locking handle when making a coffee drink.

Wait five seconds after power button has stopped blinking.

Do not touch capsules when you remove it from the machine.

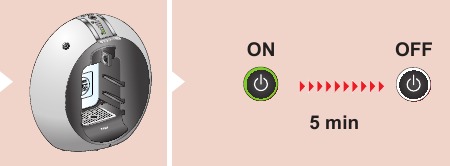

Economy mode

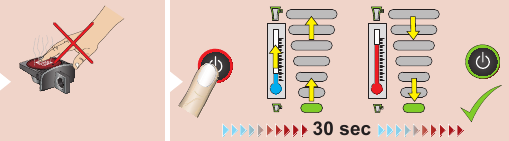

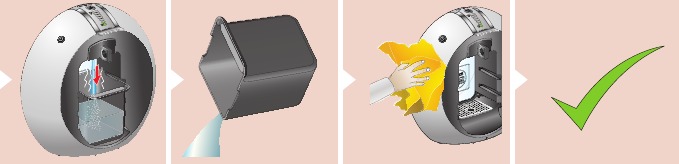

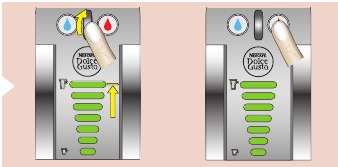

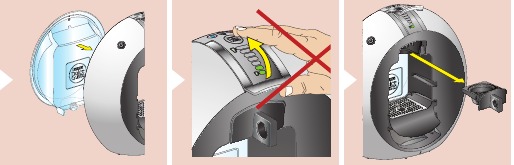

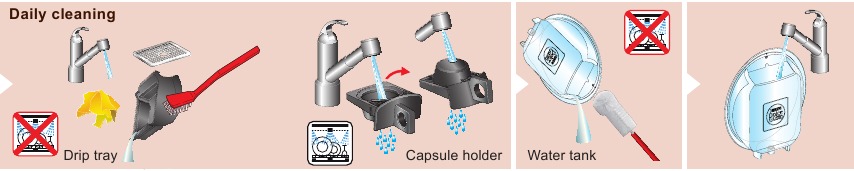

Cleaning

Insert capsule holder without a capsule inside.

Push power button, wait until light stops flashing.

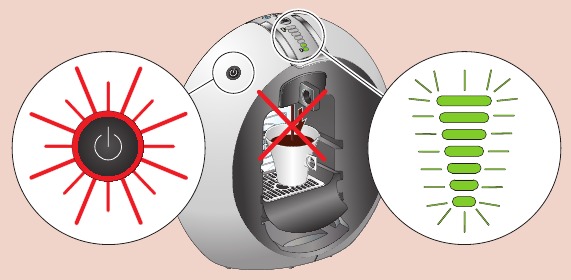

If no liquid comes out

Check if there is water in the water tank. If not, refill and press „Start" button again.

If no liquid comes out even if there is enough water in the water tank, proceed as described below.

Check if the locking handle can be lifted easily: NO - see position A / YES - see position B

The capsule may be blocked and under pressure. Do not use force to lift the locking handle.

Wait for 20 minutes to reduce the pressure.

Then lift the locking handle and remove the capsule holder.

Throw away the capsule.

The injector may be blocked.

Lift the locking handle and remove the capsule holder.

Throw away the capsule.

Remove the water tank and take out the cleaning needle. Close the locking handle.

For better access to injector tilt machine.

Unblock the injector with the cleaning needle.

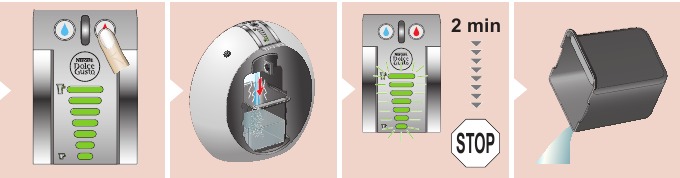

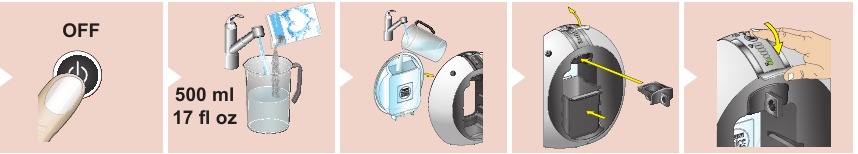

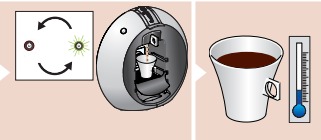

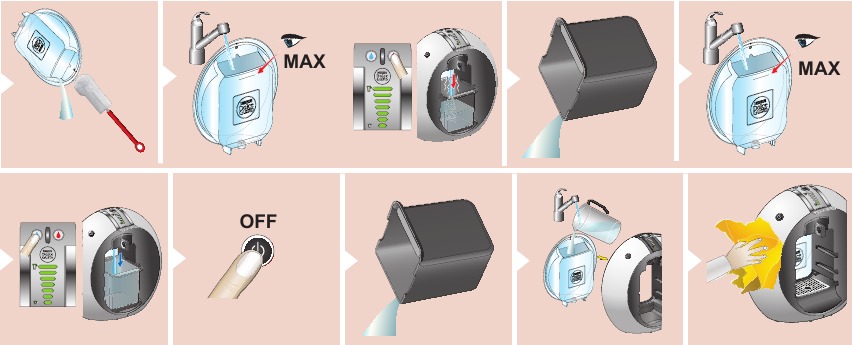

Descaling at least every 3-4 months

Depending on water hardness in your region

Background information
There are minerals such as calcium and magnesium naturally present in most water supplies. High count of solids is referred to as hard water.
Scale is the sediment boiled out of the water that eventually coats the internal brewing components of any coffee or espresso machine.
Descaling is critical to the long life of the product. In areas with known high mineral content it's important to descale about once per month. Otherwise every 3-4 months is adequate.

If power button flashes alternately red/green, descale.

Order descaling packet over the phone or the internet.

Press power button for 5 seconds to enter descaling mode.

Read instruction on the descaling packet.

Do not put powder directly on the machine.

Do not use vinegar.

Do not interrupt cycle.

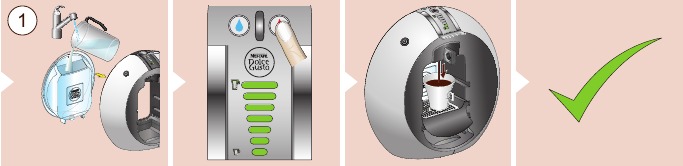

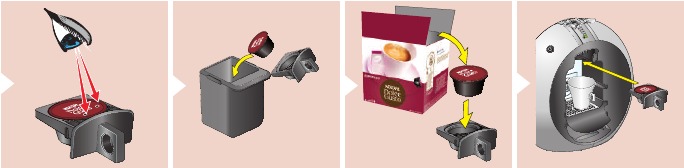

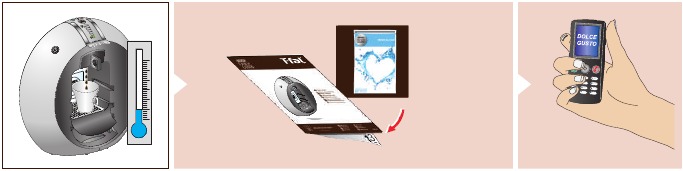

Troubleshooting

If power button does not light up:

• check connection of power cord

• check if main voltage is available.


If upon starting the machine you see no flow or the flow suddenly stops, the water may be building up inside the capsule. Stop the machine by turning the selection lever to the neutral position. After 20 minutes lift the locking handle and discard the capsule.

High pressure

See "Cleaning" and "If no liquid comes out" sections for further instructions.

If beverage leaks from the capsule holder, check if the capsule has not been pierced twice.

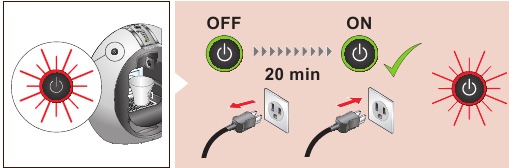

If power button flashes, unplug for 20 minutes. Plug machine back in. Turn on the machine. If power button still flashes, call customer service.

Safety precautions

When using electrical appliances, basic safety precautions shall always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. Connect the appliance to outlets with a grounding contact only. Electrical voltage must be 120 V.
4.
   To protect against fire, electric shock and injury to persons do not immerse cord, plugs or appliance in water or other liquid. Never touch cord with wet hands. Do not overfill water tank.
5. Close supervision is necessary when any appliance is used near children. Keep appliance / power cord / capsule holder out of reach of children. Children should not use the appliance.
6. This coffee machine is not intended for use by: children; or persons who may suffer from a mental and/or physical impairment - unless they are adequately supervised in its operation and use by a person responsible for their safety. Persons who have a limited or no understanding of the operation and use of this appliance must first read and fully understand the contents of this user manual, and where appropriate seek additional guidance on its operation and use from the person responsible for their safety.
7. Unplug from outlet when not in use.
8. Unplug from outlet before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. Never clean wet or immerse appliance in any fluid. Never clean the appliance with running water. Never use detergents to clean the appliance.
9. After use of the appliance always remove the capsule and clean the capsule holder. Empty and clean drip tray and capsule bin daily.
10. Do not turn off the appliance during descaling process. Rinse the water tank and clean the appliance to avoid any residual descaling agent.
11. Any operation, cleaning and care other than normal use must be undertaken by after-sales service centres approved by NESCAFÉ Dolce Gusto Hotline.
12. In case of intensive use without allowing sufficient cooling time, the appliance will stop functioning temporarily with the red indicator light blinking. This is to protect your appliance from overheating. Switch the appliance off for 20 minutes to let it cool down.
13. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Unplug cord immediately. Return appliance to the nearest authorized service facility approved by NESCAFÉ Dolce Gusto Hotline for examination, repair or adjustment.
14. Do not dismantle appliance and do not put anything into openings.
15.
    The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
16. Do not use outdoors.
17. Do not let cord hang over edge of table or counter, or touch hot surfaces or sharp edges. Do not allow cord to dangle (risk of tripping up).
18. Do not place on or near a hot gas or electric burner, or in a heated oven.
19. To disconnect, turn any control to « off «, then remove plug from wall outlet. Do not unplug by pulling the cord.
20. Do not use appliance for other than intended use. Appliance is for household use only (non-commercial areas). Appliance must be used in accordance with these instructions and specifications. Use only capsules provided. Liability of manufacturer will be voided due to wrong use for not intended purposes.
21. Always close extraction head with capsule holder. Do not pull out capsule holder before indicator stops blinking.
22. Scalding may occur if the lever is opened during the brewing cycles.
23. Do not put fingers under outlet during beverage preparation.
24. Do not touch the needle of the extraction head.
25. Never carry the appliance by the extraction head.
26. The capsule holder is equipped with one permanent magnet. Avoid placing capsule holder near appliances and objects that can be damaged by magnetism, e.g. credit cards, diskettes and other data devices, video tapes, television and computer monitors with picture tubes, mechanical clocks, hearing aids and loud speakers. Patients with pacemakers or defibrillators: Do not hold capsule holder directly over pacemaker or defibrillator.
27. 1. A short power-supply cord is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
    2. Longer extension cords may be used if care is exercised in their use.
    3. If a long extension cord is used,
       1. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
       2. If the appliance is of the grounded type. the extension cord should be a grounding-type 3-wire cord, and
       3. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.
28. Each capsule is designed to prepare a perfect cup, and cannot be reused. The capsule should be removed from the machine after extraction.

SAVE THESE INSTRUCTIONS

LIMITED WARRANTY

CONSUMER SERVICE
If you have additional questions, please call our Consumer Service Department. It is helpful to have the product available at the time of your call and to know the reference number that can generally be found on the base of the product.

CANADA
Phone: 1-888-809-9267
Hours: Monday – Friday from 9:00 a.m. – 6:00 p.m. (EST)

Customer service:
# 1-888-809-9267
Monday - Friday
9 am to 6 pm, Eastern time
www.dolce-gusto.ca
