Emerson Sensi Manual

Contents

1 Compatibility
2 What's in the box
3 Here's what you'll need
4 Download the Sensi app before you begin
5 Installation Overview
6 Warnings
7 References
8 Download manual
9 In Other Languages

Compatibility

You're just a few steps away from complete comfort control.

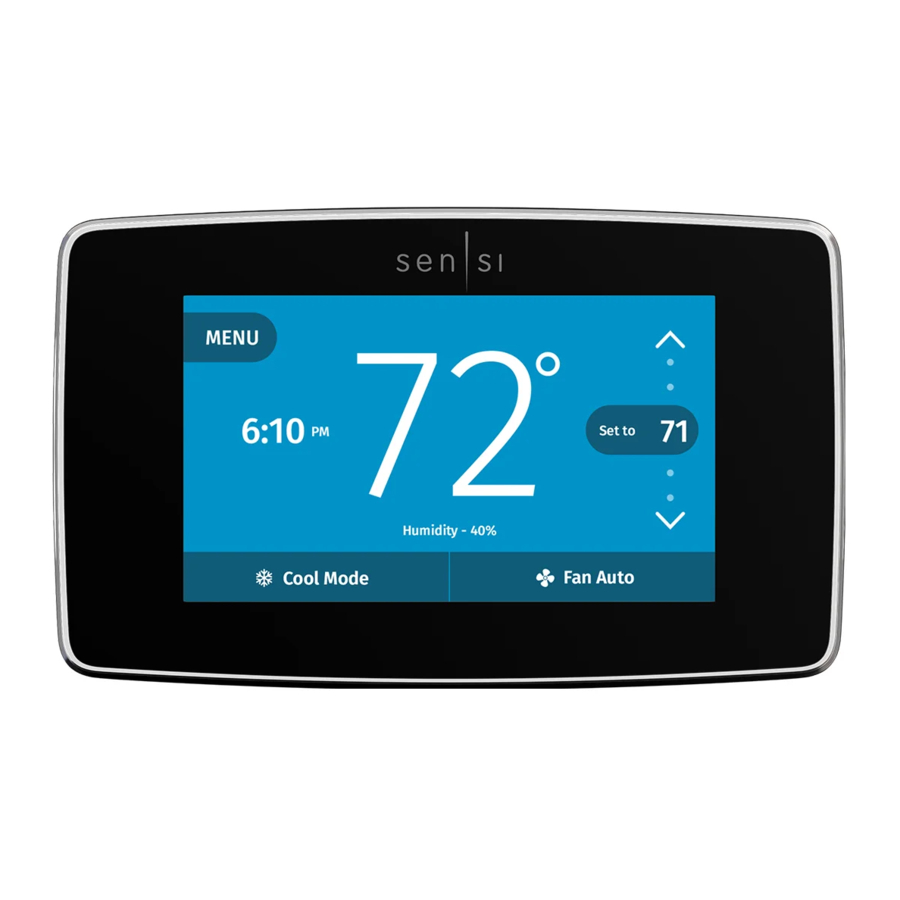

Never installed a thermostat before? We've got you covered. Sensi Touch Wi-Fi Thermostat was designed for a quick and easy DIY installation. The Sensi app provides step-by-step instructions and helpful videos to get you up and running in no time.

Not only does Sensi work with the HVAC equipment in most homes, but it also works with most mobile devices and smart home platforms.
Check out the information below, to make sure Sensi thermostat will work for you:

MOBILE DEVICE COMPATIBILITY
OPERATING SYSTEM	COMPATIBILITY
iOS 10.0 or later	Yes
Android	Yes
Amazon Fire	Yes
SMART HOME PLATFORM COMPATIBILITY
OPERATING SYSTEM	COMPATIBILITY
Wink	Yes
Amazon Alexa	Yes
Apple HomeKit	Yes, but requires a common wire (c-wire)
HVAC SYSTEM COMPATIBILITY
SYSTEM TYPE	COMPATIBILITY	MODIFICATIONS
Conventional heating and cooling Gas furnace Air conditioner Electric furnace Boiler	Yes	Requires a common wire (c-wire)
Heat only Gas furnace Electric furnace Boiler	Yes	Requires a common wire (c-wire)
Cool only Air conditioner	Yes	Requires a common wire (c-wire)
Heat pump	Yes	Requires a common wire (c-wire)
Communicating proprietary systems	No	Needs standard HVAC wiring
Line voltage	No	Requires low voltage (20-30VAC)
Millivolt systems	No	Requires 20-30VAC
Remote sensors, whole home humidifiers/ dehumidifiers	No	Control of these accessories is not currently supported

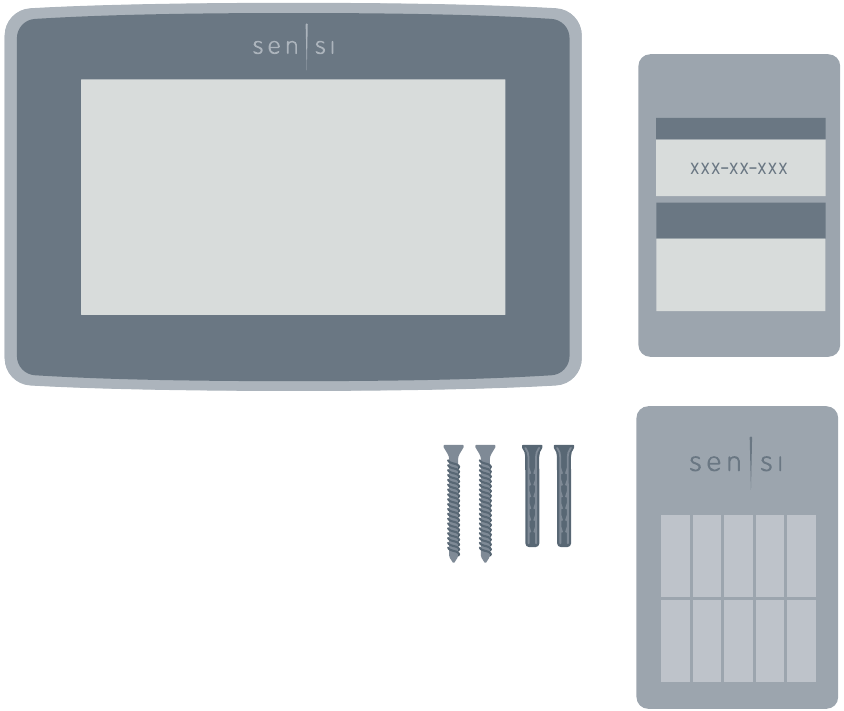

What's in the box

Sensi Thermostat
Screws and Anchors
Wire Labels
Sensi Password

For Android: Found on the back of the welcome guide.
For iOS: Your Sensi HomeKit Code will display on your thermostat during the connection process.

Here's what you'll need

Things you'll definitely need:

Small Phillips Screwdriver
Medium Phillips Screwdriver
Compatible iOS or Android with the Sensi App Installed
Your Email Address
Your Wi-Fi Network Name (SSID) and Password

Things you might need:

Needle-Nose Pliers
Drill with 3/16" Bit
Wire Stripper

Download the Sensi app before you begin

This document is not meant to be used independently or to replace the step-by-step installation procedure found only in the Sensi app. The app is required for installation to ensure proper configuration and enable Wi-Fi control of your thermostat.
The free Sensi mobile app is available on the App Store and Google Play. Simply search for "Sensi" and download to your device to get started.
All system types require a common wire (c-wire).

Installation Overview

CREATE YOUR ACCOUNT.
Open the Sensi app on your device and follow the prompts to create an account, using a valid email address.
Your Sensi account can only be linked to one email address, but you can share your account information across devices so your whole family can have access.

INSTALL YOUR THERMOSTAT.
The Sensi app will walk you through removing your old thermostat from the wall, labelling your existing wires and installing your new Sensi thermostat.

CONNECT TO WI-FI.
After installation the app will walk you through connecting your new thermostat to your home Wi-Fi network. Remember to have your Wi-Fi network name, password and Sensi password ready.

REGISTER YOUR THERMOSTAT.
Finally, the app will walk you through registration so you can start controlling your home comfort
Anytime. Anywhere.

Warnings

INSTALLER INFORMATION
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY AND/OR PROPERTY DAMAGE.

OUT OF PHASE TRANSFORMERS
On two transformer systems, the transformers MUST be in phase. Measure the voltage across RC and RH. If more than 12 Volts AC is present between RC and RH, then the transformers are NOT in phase.
To correct this condition, reverse the secondary low voltage connections at either the Heating or Cooling transformer.

VOLTAGE REQUIREMENTS
Do not use on circuits exceeding specified voltage. Higher voltage will damage control and could cause shock or fire hazard.
Thermostat installation and all components of the control system shall conform to Class II circuits per the NEC code.

To prevent electrical shock and/or equipment damage, disconnect electric power to system at main circuit breaker box until installation is complete.

E5 Alert
If "Call For Service" is displayed on your Sensi thermostat, and E4 or E5 appears where the room temperature should be displayed or the backlight is flashing, please call our support team immediately at 888.605.7131

FOR CALIFORNIA RESIDENTS: WARNING:
This product contains a chemical known to the state of California to cause cancer and birth defects and other reproductive harm.

Need some help?
Visit sensicomfort.com/support for around-the-clock access to support articles, instructional downloads and comprehensive support videos. Our highly-trained Sensi Support Team is available seven days a week.
1.888.605.7131
support@sensicomfort.com

www.sensicomfort.com
