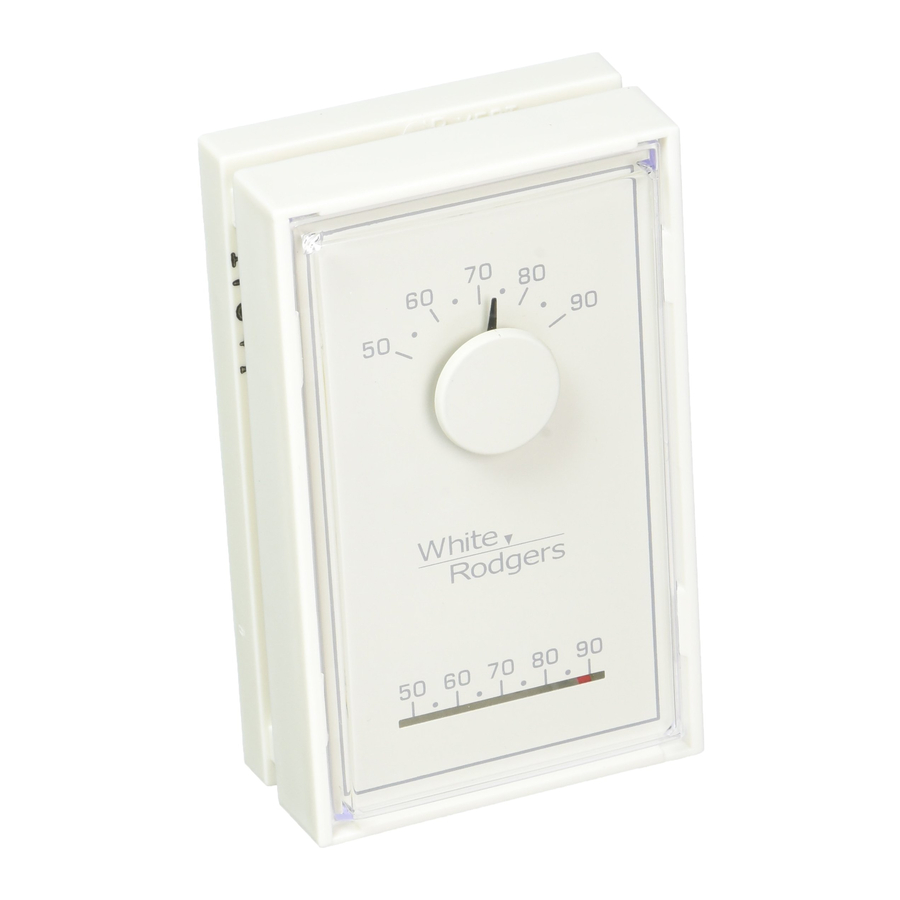

White Rodgers 1E30N-910, 1E50N-301 - Mechanical Thermostats Manual

Contents

1 PREPARATIONS
2 THERMOSTAT FEATURES
3 REMOVING OLD THERMOSTAT
4 MOUNTING AND WIRING
5 SET HEAT ANTICIPATOR
6 NEW THERMOSTAT OPERATION
7 SPECIFICATIONS
8 TROUBLESHOOTING
9 References
10 Download manual
11 In Other Languages

YOUR THERMOSTAT REPLACES

System	Models
Standard Heat Only Systems	1E30N-910 1E50N-301
Electric Furnace
Heat Pump (No Aux or Emergency Heat)
Gas or Oil Heat
Millivolt Heat Only Systems

PREPARATIONS

Assemble tools required: power drill, fl at blade screwdriver, wire cutter/stripper, level.

Failure to follow and read all instructions carefully before installing or operating this control could cause personal injury and/or property damage.

THERMOSTAT FEATURES

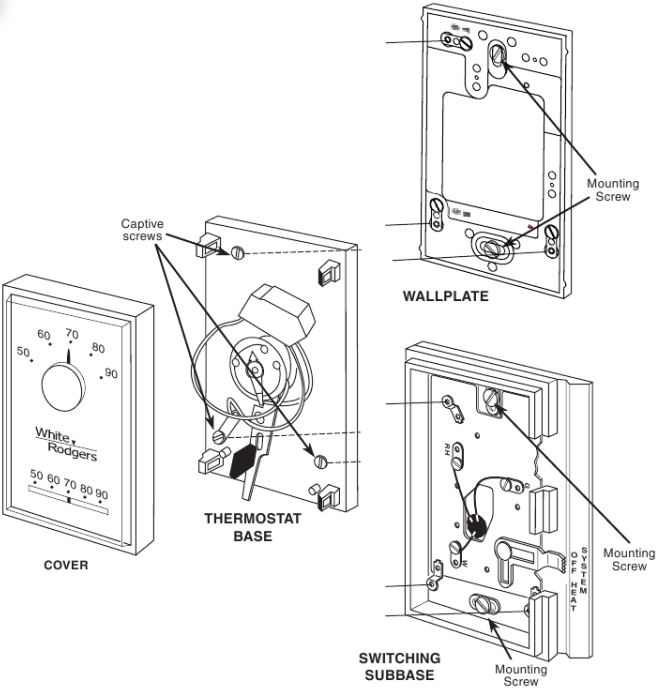

Thermostat with subbase or wallplate

REMOVING OLD THERMOSTAT

To prevent electrical shock and/or equipment damage, disconnect electrical power to the system at the main fuse or circuit breaker until installation is complete.

Before removing wires from old thermostat's switching subbase, label each wire with the terminal designation it was removed from.

Remove Old Thermostat: A standard thermostat consists of three basic parts:
1. The cover, which may be either a snap-on or hinge type.
2. The base, which is removed by loosening all captive screws.
3. The switching subbase, which is removed by unscrewing the mounting screws that hold it on the wall or adaptor plate.

Make a note of the anticipator setting on the old thermostat for future reference and use in step 5.

The heat anticipator pointer, if adjustable, will be set at one of a series of numbers representing the current rating of the primary control in your furnace. The number will be one of the following: .2, .4, .8, etc. or 0.2, 0.4, 0.8, etc.

If no heat anticipator/indication is showing, do not be concerned; move on to the next step.

warning ATTENTION! This product does not contain mercury. However, this product may replace a unit which contains mercury.

Do not open mercury cells. If a cell becomes damaged, do not touch any spilled mercury. Wearing non-absorbent gloves, take up the spilled mercury and place into a container which can be sealed. If a cell becomes damaged, the unit should be discarded.

Mercury must not be discarded in household trash. When the unit this product is replacing is to be discarded, place in a suitable container. Refer to www.whiterodgers.com for location to send product containing mercury.

MOUNTING AND WIRING

Do not use on circuits exceeding specified voltage. Higher voltage will damage control and could cause shock or fire hazard.
Do not short out terminals on gas valve or primary control to test. Short or incorrect wiring will damage thermostat and could cause personal injury and/or property damage.
Thermostat installation and all components of the system shall conform to Class II circuits per the NEC code.

Remove base from subbase or wallplate: Loosen the screws on the base and remove.
Mount switching subbase or wallplate: Use the screws provided to mount the subbase or wallplate to wall.
Attach wires to appropriate terminals: Two wire systems (Heat Only). Attach one wire to RH and one to wire W.
Mount Thermostat Base: Gently push excess wire back into the wall opening and plug hole with a fi re-resistant material, such as fibreglass insulation to prevent drafts from affecting thermostat operation. Mount the thermostat base to the subbase or wallplate using the three captive screws on the thermostat base. Tighten the screws securely. Proceed to Step #5.

Take care when securing and routing wires so they do not short to adjacent terminals or rear of thermostat. Personal injury and/or property damage may occur.
TERMINAL CROSS REFERENCE CHART
New Thermostat Terminal Designation	Other Manufacturers' Terminal Designation
RH	4	RH	M	R5	R
W	W	W	H	4	W

SET HEAT ANTICIPATOR

Set anticipator to match the setting of your old thermostat you noted in Step 3, or, the anticipator should be set to match the current rating stamped on your main heating control. The heat anticipator is adjustable from 0.15 to 1.2 amps. Adjust the anticipator by rotating the contact arm. The anticipator setting is indicated by the numbers on the base that the pointer points to. If you are unsure where to set the anticipator contact the heater manufacturer for a recommended setting.

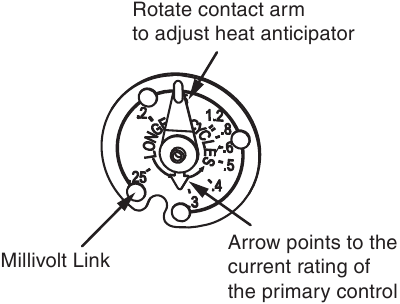

Anticipator adjustment

Move the pointer counterclockwise to lengthen heating system cycles; move clockwise to shorten heating cycles. Adjustments should not be greater than 1/2 marking at a time.

For millivolt operation, rotate contact arm to Millivolt Link.

Snap on Cover: Carefully align the cover with the base and snap the cover onto the base.

NEW THERMOSTAT OPERATION

This thermostat is easy to operate. After power is turned on, use the system switch to select heating, or to turn the heating system off.

SPECIFICATIONS

ELECTRICAL DATA

Switch Rating: 24 VAC (30 VAC max.)

Heating: 0.15 to 1.2 Amps

Anticipator Rating:

Heating: Adjustable from 0.15 to 1.2 Amps

THERMAL DATA:

Temperature Range: 50°F to 90°F (10°C to 32°C)

Operating Humidity Range: 0 – 90% noncondensing

TROUBLESHOOTING

Wiring

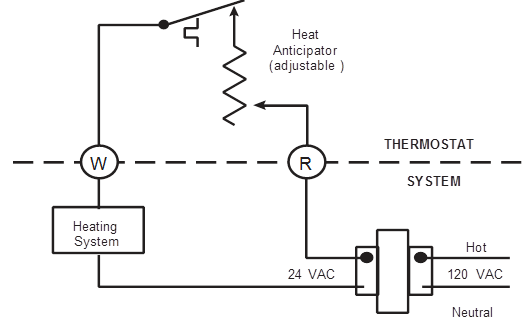

Typical wiring for single transformer heating system

Symptom	Possible Cause	Corrective Action
No Heat/ No Fan (common problems)	Blown fuse or tripped circuit breaker. Furnace power switch to OFF. Furnace blower compartment door or panel loose or not properly installed.	Replace fuse or reset breaker. Turn switch to ON. Replace door panel in proper position to engage safety interlock or door switch.
		No Heat	Pilot light not lit. Broken or melted anticipator wire. Loose connection to thermostat or system. Thermostat or heating system requires replacement or service. System Switch not set to Heat.	Re-light pilot. Excessive current or dead short in system. Have a qualified service person check the system before replacing thermostat. Verify thermostat and system wires are securely attached. Your furnace manufacturer or service person can describe how to test the heating system to verify it is operating correctly. If the heating system is capable of operation and the no heat condition persists, replace the thermostat. Set System Switch to Heat and raise temp above room temp.
		Intermittent Heat	Furnace Lock-Out Condition	Many furnaces have safety devices that shut the system down when a lock-out condition occurs. If the heat works intermittently contact the furnace manufacturer or local service person for assistance.
		Heat or Fan Runs Constantly.	Possible short in wiring. Possible short in thermostat. Possible short in heat/cool/fan system.	Check each wire connection to the thermostat to verify it is neatly looped under the terminals. No extra wire should stick out from under the terminals.
Furnace Cycles Too Fast or Too Slow Narrow or wide temperature swing	See Step 5, Adjusting the Anticipator.	The anticipation setting is the only adjustment that effects the heating cycle rate. If an acceptable cycle rate is not achieved using the anticipator contact a local service person for additional suggestions. The location of the thermostat, size of the Heat/Cool System and current draw can influence the cycle rate.
Thermostat Setting and Thermostat Thermometer Disagree	Thermostat thermometer setting requires adjustment. Thermostat setting lever requires calibration.	The thermometer can be adjusted by using a standard slotted screwdriver. Turn the thermometer pointer screw located inside the front cover to change the setting. For calibrating the setting lever contact a local heating and cooling service person.
Adjusting Thermometer	Thermostat thermometer disagrees with other room thermometers.	The thermometer on the thermostat is accurately calibrated at our factory but you can adjust it by using a standard slotted screwdriver. Turn the thermometer pointer screw located inside the front cover to change the setting.
