Raycon The Fitness Earbuds RBE745 Manual

INTRODUCTION

Before using your product, we strongly encourage you to fully read through this user guide. You can also visit our support center at www.rayconglobal.com/support. This web page has more specific guidelines and helpful videos for you to navigate your product. For the best performance, charge fully before first use.

Pairing ID: The Fitness Earbuds

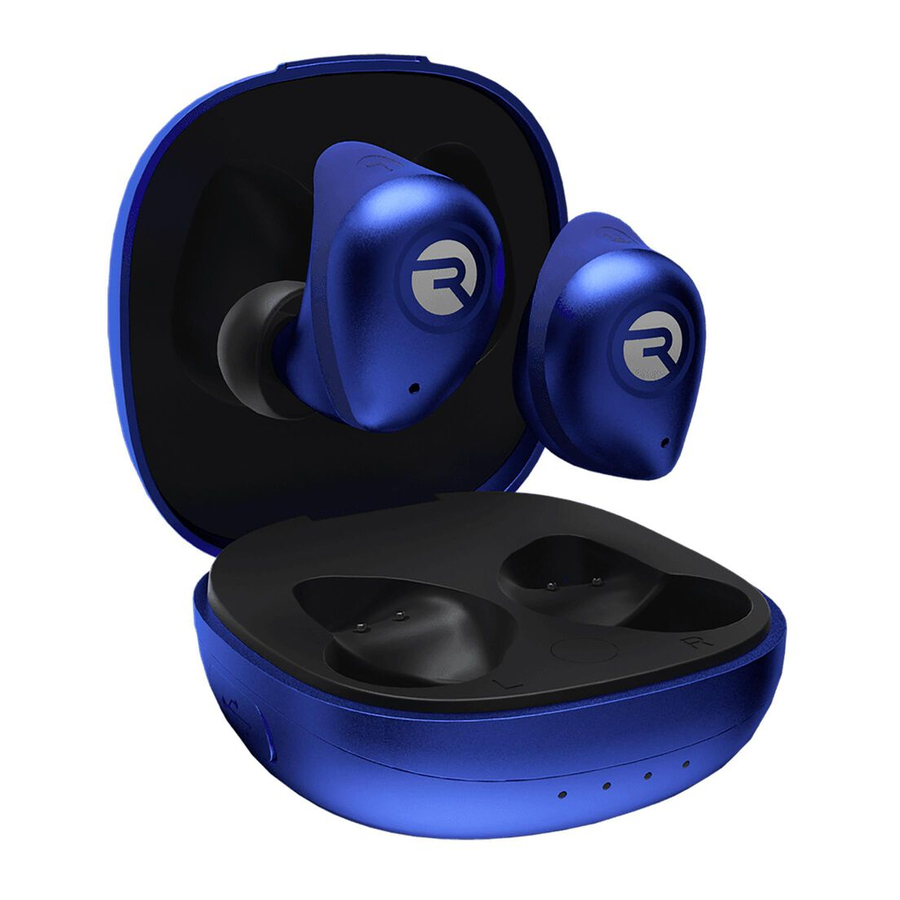

UNIT AT A GLANCE

1. Touch Controls
2. LED Indicator/Microphone
3. Perfect Fit Stabilizer
4. Gel Tips
5. Charging Port
6. Wireless Charging Capsule
7. Battery Indicator

FEATURES AT A GLANCE

PERFECT FIT STABILIZERS
Perfect fit stabilizers make sure your Fitness Earbuds stay put even while you're on the move.

IPX7 WATERPROOF
Tough conditions don't get in the way of your workouts, they definitely won't get in the way of your tunes because the Fitness Earbuds have IPX7 waterproofing.

54 HOURS OF BATTERY LIFE
You don't have time to wait around for a charge, that's why the Fitness Earbuds have 54 Hours of Battery Life.

AWARENESS MODE
Stay focused on your workout but in tune with your surroundings with Awareness Mode.

VIVID VOICE TECHNOLOGY
Make your voice heard loud and clear even while you're breaking a sweat with Vivid Voice Technology.

THREE SOUND PROFILES
Three Sound Profiles keep your workouts exciting by keeping the sound fresh.

QUICK START GUIDE

1. Take your earbuds out of the capsule. Both earbuds will connect to each other automatically.

2. From the source device, go to Bluetooth Settings, search for and select "The Fitness Earbuds" to pair.

3. Enjoy your Raycon Fitness Earbuds!

CHARGING YOUR DEVICE

Charging the Earbuds

Place Earbuds in the Capsule

Charging: While charging, the lights on earbuds will be red, and the lights on capsule will be red

Fully Charged: Your earbuds are fully charged when the lights on both your earbuds and capsule turn off

Charging The Capsule

Connect with Type-C cable

Charging:
While charging, the lights on the capsule will blink white.

A fully charged capsule can completely recharge the earbuds up to 5 times before needing to recharge the capsule.

Wireless Charging: Simply place the case on any Qi-compatible charging mat.

FUNCTIONS

Left Earbud

Right Earbud

Control audio and other functions by tapping the logo on the earbud

Media Player Control

	Tap for Volume Up
	Tap for Volume Down
	Tap / 2 times for Play/Pause
	Tap 3 times for Next
	Tap 3 times for Previous
SIRI	Tap / 4 times to Activate Voice Assistant

Phone Call Control

	Tap / 2 times for Answer/End Call
	Hold / for 3 secs to Reject Call

Switch Control

	Hold /for 3 secs or place earbuds in capsule, close lid, and remove from capsule to Power On.
	Hold /for 10 secs or place earbuds in charging capsule to Power Off.

SOUND PROFILES

Your sound, your way! As our sound profiles were crafted by artists and producers at the top of the industry, you're in good hands.

PURE SOUND - Our most refined sound, perfect clarity to hear every single note.

BALANCED SOUND - A leveled sound that is great for all around performance and warmth.

BASS SOUND - Our bass boosted sound, great for songs with strong beats and a go-to for bass lovers.

Hold for 3 secs to toggle between Sound Profiles

AWARENESS MODE

Hear what's happening around you.

Hold for 3 secs to toggle Awareness Mode On/Off

HOW TO CHANGE GEL TIPS

Choose and install the gel tip that gives you the most comfortable and secure fit.

Flip the gel tip inside out.

Align gel tip with earbuds and insert it.

Flip the gel tip back to front.

Make sure it is securely attached before you use.

HOW TO CHANGE STABILIZERS

Ensure the stabilizer corresponds with the correct earbud.

Secure the inner hook of the stabilizer into the groove at the top of the earbud.

Guide the stabilizer into place.

Ensure stabilizer is fully secure before use.

GEL TIPS

XS

M

L

XL

Select the right size gel tip for your ear.

Keep gel tips clean to ensure a great listening experience.

PERFECT FIT STABILIZERS

Select the right size stabilizer for your ear.

XS

M

L

THE PERFECT FIT SHOULD LOOK LIKE THIS

Insert the earbuds into your ear.

Rotate the earbuds slightly forward.

The perfect fit should look like this.

SAFETY GUIDELINES

Please follow the safety guidelines below at all times when operating or caring for your device.

• Be wary of any edges, uneven surfaces, and metal parts, including on accessories and product packaging, to prevent any possible injury or damage.
• Listen to music at a proper volume to avoid damaging your hearing and the earbuds.
• Do not store in high temperatures, such as in a hot vehicle or in direct sunlight.
• Do not expose the earbuds or any of its supplied parts to rain or other liquids for extended periods of time. Follow IPX7 Rating Guidelines.
• If wet or submergered, please wipe dry as best possible before charging earbuds or capsule.
• Do not drop or cause undue impact to the earbuds.
• Do not modify, repair, or dismantle the product on your own.
• Do not use any diluent or volatile liquid to clean the product.
• Do not use the product in a hazardous location.

FAQ & ADDITIONAL RESOURCES

Visit: www.rayconglobal.com/support.

SUPPORT

If your device is not functioning correctly, please visit www.rayconglobal.com/support for customer support, and we will be more than happy to help you.

LIMITED WARRANTY

Visit: www.rayconglobal.com/warranty.

SPECIFICATIONS

Model Number: RBE745
Bluetooth Name: The Fitness Earbuds
RDID: D745-21E-Q321
Bluetooth Version: 5.2
Power Input: DC 5V/1A
Capsule Battery Capacity: 3.7V/600mAh
Call / Play Time: About 9 hours
Charging Time: About 1 hour
Support Profiles: HSP/HFP/A2DP/AVRCP
Sensitivity: 102±3dB
Frequency Response Range: 20-20000Hz
Bluetooth Range: Up to 10 Meters

FCC WARNING

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure statement. The device can be used in portable exposure condition without restriction

This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

FCC ID: 2AZOV-RBE745
IC: 27185-RBE745
