1 Preparation
- 1.1 Before You Start
- 1.2 Getting Started
2 Wiring Diagram
3 OPERATION
4 Troubleshooting
5 Specifications
6 Safety Information
7 Customer Support
8 References
9 Download manual
10 In Other Languages

Preparation

Please read entire manual before installation.

Before You Start

Disconnect negative battery terminal. Consult a qualified technician for instructions.
Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

Remove trim ring from unit.
Remove 2 transit screws located on top of the unit.
Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve.
Install mounting sleeve into opening, bending tabs to secure.
Connect wiring harness and antenna. Consult a qualified technician if you are unsure.
Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately).
Test for correct operation and secure back into dashboard.
Snap trim ring into place if needed.

Wiring Diagram

warning Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp blade-type fuse located on the back of the unit.

warning Wiring Notes:
Subwoofer Output
The subwoofer preamp output (black jacket with green RCA) is active in all audio modes.

Rear camera input
A rear view camera (not included) can be used with the Camera input.

OPERATION

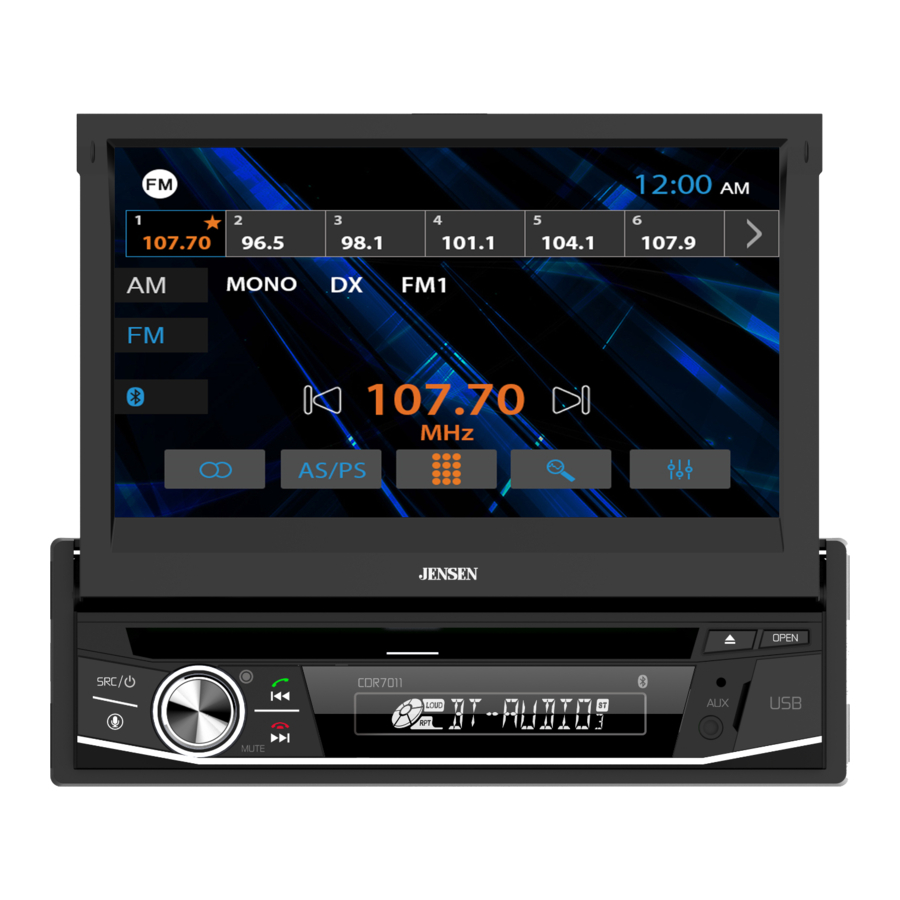

Control Locations

Source / Power
Mode / Voice Activation
Volume / Mute
Tune/Track Up / End Call
Tune/Track Down / Call
Disc Slot
Auxiliary Input
USB Slot
Reset Button
Panel Open
Eject

General Operation

Power On/Off	Press or any other button (except Eject) to turn the unit on. Press and hold to turn the unit off.
Source	Press SRC to access available input modes: Radio, Disc, USB, Bluetooth Phone, Bluetooth Audio, AUX, Camera and Settings. Disc or USB device must be connected/inserted to appear in the mode selection string.
Volume	Rotate the volume knob to increase or decrease the volume level.
Mute	Momentarily press to silence the audio. Momentarily press again to return to the previously selected volume. Rotating the volume knob while the muted will also cancel the mute function.
Auxiliary Input	Connect external audio devices to the 3.5mm auxiliary input on the front panel.
USB Port	Connect a USB device to the USB port on the front panel to play MP3 files.
Main Menu	From any operational mode, press the arrow icon in the top left corner to access the Main Menu screen. Use the right and left arrows in the bottom corners to navigate between the two Main Menu screens, and touch any icon to directly access the corresponding mode.

Radio
Media Player
Bluetooth Phone
Disc
USB
Bluetooth Audio
Auxiliary Input
Rear Camera
Settings

From the Main Menu screen, select Settings to access the Setup menu and select from categories displayed on the left side of the screen: General, Clock, Audio, Bluetooth, Display and About. Use the touch screen to navigate and adjust individual options within each category.

Audio Settings

Volume
EQ Settings
EQ On/Off
Loudness On/Off
EQ Reset
Return to Source
EQ Presets / Custom
Balance / Fader

Balance/Fader Settings

Volume
Fader Reset
Subwoofer On/Off
Return to Source
Return to EQ Controls

Radio Operation

	Radio Operation	Select the Radio icon from the Main Menu screen.
1	Current Mode / Main Menu	Displays current mode of operation. Press to return to Main Menu screen.
2	Tuner Presets	Displays the preset stations stored in the current band. To store a preset station, tune unit to desired station, then press and hold the desired preset button to store the current station in that preset spot. Up to 18 FM and 12 AM stations can be stored in memory. Momentarily press any preset station to play it instantly.
3	AM	Press to access AM bands.
4	FM	Press to access FM bands.
5	Bluetooth	Press to directly access Bluetooth hands-free mode.
6	Stereo / Mono	Press to select Stereo or Mono operation.
7	Tune Down	Press to tune down by seeking the next strong station. Press and hold to tune manually and adjust the frequency one step at a time.
8	AS/PS	Press and hold to automatically store the six strongest stations in the current band as presets. Press briefly to scan all preset stations in the current band.
9	Direct Tuning	Press to directly enter the desired station number and begin playback of that station.

10	Station Number	Displays the current station number.
11	Station Search	Press to search for a specific station.
12	Tune Up	Press to tune down by seeking the next strong station. Press and hold to tune manually and adjust the frequency one step at a time.
13	Audio Settings	Press to enter the Audio Settings menu and adjust the following audio options: EQ - Use the touch screen to adjust equalisation curves to suit individual listening preferences. The following equaliser frequencies are available for adjustment: 62Hz, 150Hz, 400Hz, 1KHz, 3KHz, 7KHz, 12KHz, 16KHz. An adjustment range of +16dB to -16dB is available for each frequency band. Fader-Balance - Use the touch screen to adjust the balance of the audio output levels throughout the vehicle (+6dB to -6dB). The fader adjusts levels front to back, and the balance adjust from left to right. Loudness - Use the touch screen to adjust Loudness (On or Off). SRC Level - Adjust audio levels for each audio source (Disc, USB, etc.)
14	Band	Press to select between 2 AM and 3 FM bands.

Media Player Operation

	Media Player Operation	Select the Media Player icon from the Main Menu screen.
1	Current Mode/Main Menu	Shows current mode of operation. Press to return to Main Menu.
2	Bluetooth Music	Press to access Bluetooth music.
3	USB	Press to access files on USB device.
4	Bluetooth Phone	Press to access Bluetooth phone.
5	Random	Press to enable or disable Random playback.
6	Tune Down	Press << to tune radio to a lower frequency. Press and hold to tune the unit down one step at a time.
7	Repeat	Press to enable or disable Repeat playback.
8	Direct File Entry	Press to display the keypad and enter the desired file number.
9	Play / Pause	Press to pause or resume playback.
10	File List	Press to display a list of all files on the device.
11	Tune Up	Press >> to tune radio to a higher frequency. Press and hold to tune the unit up one step at a time.
12	Audio Settings	Press to access and adjust audio settings.
13	Time Indicator	Displays elapsed time/remaining time for the current file.
14	ID3 Metadata	Displays current file information.

Media Compatibility - CD/DVD

Media Compatibility - USB

Media Compatibility

Media Compatibility	The following types of discs/files are compatible: CD-DA, CD-ROM (ISO), CD-R, CD-RW DVD Video, DVD+R/RW, DVD-R/RW The following types of discs/files are not compatible: WMA files that are protected by DRM (Digital Rights Management) WMA lossless format Discs recorded with Track At Once or packet writing MP3 PRO format, MP3 playlists RMP format WAV format WMV format AAC, protected AAC, M4A format, M4V format. Some recordable DVD's and CD's may be incompatible with this unit, depending on media type and recording method.
Playback Order	MP3 playback sequence begins in the root folder of the disc, USB flash drive or SD card. Any empty folders or folders that do not include MP3
Compatible Recording Formats	ISO9660 standards: Maximum nested folder depth is 8 (including the root folder). Valid characters for folder/file names are letters A-Z (all caps), numbers 0-9, and "_" (underscore). Some characters may not be displayed correctly, depending on the character type. This device can play back discs in Joliet and other standards that conform to ISO9660. MP3 written in the formats other than the above may not play and/or their file names or folder names may not be displayed properly.
Notes	Some files may not play or be displayed correctly, depending on sampling rates and bit rates. For best results, use the following settings when ripping MP3 files: 128kbps or higher constant bit rate 44.1kHz or higher sampling frequency

DVD Operation

Inserting a Disc		Insert disc into the slot, and playback will begin automatically. Sub-menus may have to be pressed to access the DVD content. Read the directions of your specific DVD disc for other features.
Ejecting the Disc		Press to eject the disc.
Touchscreen Controls		Press anywhere on the LCD to display touch screen controls.
1	Disc Menu	Press to select disc menu.
2	Audio Settings	Press to adjust audio settings.
3	Previous Chapter	Press to return to the previous chapter.
4	Play / Pause	Press to pause or resume playback.
5	Next Chapter	Press to advance to the next chapter.
6	Next Page	Press to display the next page of options.

7	Direct Entry	Enter a chapter number directly to begin playback.
8	Audio	Press to access and adjust audio settings.
9	Repeat	Press to repeat current chapter.
10	Random	Press to enable or disable random playback.
11	Next Page	Press to display the next page of options.

Bluetooth Operation

Preparation		Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process.
Microphone		Connect an external microphone to the MIC jack in the back of the unit (no internal microphone is included).
Pairing a New Device		The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "JENSES CDR7011". The Bluetooth passcode is "0000". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once.
Connecting a Paired Device		Most Bluetooth devices support the auto-connect feature and will connect automatically if the device is in range when the unit is powered-on. If your device was previously paired but does not connect, enter the Bluetooth setup menu and ensure that Auto Connect is On.
Bluetooth Phone		To access the phone, select Bluetooth Phone from the Main Menu or press the phone icon from any operational mode.
1	Current Mode / Main Menu	Displays current mode of operation. Press to return to the Main Menu screen.
2	Phone Keypad	Use the phone keypad to dial the desired phone number. Alternately, numbers can be dialed directly from the phone.
3	Display Keypad	Press to display phone keypad.
4	Contacts	Press to access the contact list.
5	Backspace	Press to backspace when typing a phone number.
6	Recent Calls	Press to display a list of recent calls.
7	Devices	Press to view available devices.

8	Talk	Press to connect a call.
9	Phone Number	Shows the phone number dialed.
10	End Call	Press to end the current call.
11	Settings	Press to transfer call between the head unit and the mobile phone.
12	Mute	Press to mute call audio.
13	Keypad	Press to display the keypad.

Front 3.5mm Aux Input

Auxiliary Input
Connect an optional audio source into the 3.5mm (front panel) input.
Select auxiliary input from the Main Menu to listen to audio.
Adjust volume on the external audio source as needed (if connected to the headphone output of the device).

Rear Camera Operation - (Optional)

Using Rear Camera

Connect an optional rear camera to the Camera Input (Black RCA connector). Refer to the wiring diagram for details.
Manual selection - Touch CAMERA icon from the Main Menu or from any operational mode (when enabled) to select camera mode. Touch the top left area on the screen to exit camera mode.

warning Note: The manual mode is for dedicated cameras that are ALWAYS on while driving, it is not meant for cameras that are connected to the vehicle's reverse light.

Auto Selection

The unit will automatically select camera mode when connected to the reverse lamp circuitry.

warning Note: The external video output is not active when using the rear camera input.

Voice Assistant

Your receiver is designed with an easy access voice activation button to use Siri® or the Google Assistant™ via your car's Bluetooth. Interact with your smartphone assistant while you drive with only the push of a button!

Bluetooth should be paired between your smartphone and the receiver. Press the voice activation button, and the receiver will switch into Bluetooth mode, This will activate Siri® or Google Assistant™ on your smartphone. You will need to manually switch back to the previous or desired mode once this operation is terminated.

SWC Input Operation

The built-in SWC Interface is compatible with PAC steering wheel control modules.
The PAC SWI-RC is recommended. A third-party adapter must be used in order for the XDVD600 to be compatible with any steering wheel controls. The following controls are available for most vehicles.

Volume Up (+)
Volume Down (-)
Mute
Preset (+)
Preset (-)
Mode
Seek/Track Up (+)
Seek/Track Down (-)
Band
BT Talk
BT End

warning Note: Not all OE steering wheel functions may be supported by the XDVD600.

PAC SWI-RC Installation Hints

Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Other/Sony".
To program, use the Pioneer/Sony/Other radio function mapping order for CDR171 units.
When programming the SWI-RC, if a function is not supported (or not desired), then the function MUST be skipped as per the PAC SWI-RC instructions.

Function Order	Function Mapping	SWI-RC (3.3VDC Reference)
Function Order	Function Mapping	Center Pin (Ring) Voltage (Function Select)	Tip Pin Voltage
1	Volume +	H 5.0v	2.07
2	Volume -	H 5.0v	2.32
3	Mute	H 5.0v	1.01
4	Preset +	L 0.0V	1.54
5	Preset -	L 0.0V	1.81
6	Source	H 5.0v	0.60
7	Seek + / Track +	H 5.0v	1.54
8	Seek - / Track -	H 5.0v	1.81
9	Band	H 5.0v	2.73
10	BT Talk	L 0.0V	0.60

Troubleshooting

Problem	Cause	Action
Unit will not turn on (no power)	Yellow wire not connected or incorrect voltage Red wire not connected or incorrect voltage	Check connections for proper voltage (11~16VDC)
	Black wire not connected	Check connection to ground
	Fuse blown	Replace fuse
Unit has power (but no sound)	Speaker wires not connected	Check connections at speakers
Unit has power (but no sound)	One or more speaker wires touching each other or touching chassis ground	Insulate all bare speaker wires from each other and chassis ground
Unit blows fuses	Yellow or red wire touching chassis ground	Check for pinched wire
	Speaker wires touching chassis ground	Check for pinched wire
	Incorrect fuse rating	Use fuse with correct rating
Excessive skipping	Unit is not mounted correctly or backstrap is not secure	Check mounting sleeve and backstrap support
Excessive skipping	Physical defect in media (CD, CD-R or CD-RW)	Check media for scratches
ERR FILE appears on display	Disc read error	Press eject or RESET
ERR FILE appears on display	Focus error or disc is in upside down	Press eject or RESET
NO FILE appears on display	No playable MP3files found on the device	Check the device for valid MP3 files
Unit will not accept a disc	CD mechanism position out of alignment	Press EJECT to reset CD mechanism position
Unit will not accept a disc	CD transit screws still in place	Remove 2 transit screws located on top of the unit
NO SUPPORT appears on display	An invalid ID3 tag version is present	Version 1.0 to 2.0 ID3 tags are supported.

Specifications

CD Player	Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >60dB D/A converter: 1 Bit
FM Tuner	Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz
AM Tuner	Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz
General	USB Charge: 1A Speaker output impedance: 4~8 ohms Line output voltage: 4 Volts RMS Dimensions: 7" x 7" x 2" (178 x 178 x 50 mm)

CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)

Power Output: 16 Watts RMS x 4 channels at 4 ohms and < 1% THD+N
Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)

Safety Information

warning Safety Notes
(Only DVD Receiver)

Video playback will not operate while the vehicle is moving.
This is a safety feature to prevent driver distraction. In-dash video functions will only operate when vehicle is in Park and the parking brake is engaged. It is illegal in most jurisdictions for the driver to view video while the vehicle is in motion.

Upon installation of this monitor/media player ("unit") into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle's occupants or persons outside the vehicle and/or property damage.

Several states prohibit the installation of monitors/media players if the screen is visible from the driver's seat. If you reside in a jurisdiction which has enacted such a law, this unit must not be installed so that the screen is visible from the driver's seat. When installing this unit in the front console/dashboard, the unit must be positioned so that it is facing the front passenger seat only. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle's occupants or persons outside the vehicle and/or property damage.

This unit is designed so that it may be operated only when the vehicle is in "Park" and the parking brake is fully engaged. To this end, this unit includes a parking brake lock-out feature which prohibits the unit from operating if the vehicle is not in "Park" and/or the parking brake is not fully engaged. When installing this unit, the installer must connect the parking brake detect wire to the parking brake mechanism in order to make the parking brake lock-out feature operable. DO NOT simply ground the parking brake detect wire to a metal portion of the vehicle. Failure to properly install the parking brake lock-out feature could lead to driver distraction which could result in serious injury or death to the driver's occupants or persons outside the vehicle and/or property damage.

Once the parking brake lock-out feature is installed, the owner/user must not attempt to disrupt/neutralise the parking brake lock-out feature by

partially engaging the parking brake and/or
purchasing/using any device or unit designed to send necessary brake signals to the unit.

Failure to follow these instructions could lead to driver distraction which could result in serious injury or death to the driver's occupants or persons outside the vehicle and/or property damage.

When operating this unit, keep the unit's volume level low enough so that the vehicle's occupants can hear traffic-related sounds such as police and emergency vehicles. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle's occupants or persons outside the vehicle and/or property damage.

warning Note.
The above video Content is for DVD Receiver Only.

Please read all instructions carefully before attempting to install or operate.
Due to its technical nature, it is highly recommended that your radio is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.

To prevent damage or injury:

Make sure to ground the unit securely to the vehicle chassis ground.
Do not remove the top or bottom covers of the unit.
Do not install the unit in a spot exposed to direct sunlight or excessive heat or the possibility of water splashing.
Do not subject the unit to excessive shock.
When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may cause the unit to malfunction.
To prevent short circuits when replacing a fuse, disconnect the wiring harness first.
Use only the provided hardware and wire harness.
You cannot view video while the vehicle is moving. Find a safe place to park and engage the parking brake.
If you experience problems during installation, consult your nearest Jensen dealer.
If the unit malfunctions, reset the unit first. If the problem still persists, consult your nearest Jensen dealer or call tech assistance @ 1-888-921-4088.
To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not use a stiff cloth, or volatile solvents such as paint thinner and alcohol. They can scratch the surface of the panel and/or remove the printing.
When the temperature of the unit falls (as in winter), the liquid crystal inside the screen will become darker than usual. Normal brightness will return after using the monitor for a while.
When extending the ignition, battery or ground cables, make sure to use automotive-grade cables or other cables with an area of 0.75mm (AWG 18) or more to prevent voltage drops.
Do not touch the liquid crystal fluid if the LCD is damaged or broken. The liquid crystal fluid may be hazardous to your health or fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately.
