CICLOSPORT CICLOMASTER CM 2.1 - Bike Computer Manual

Introduction

With the CICLOMASTER CM 2.1 you have acquired an electronic bike computer with state of the art electronics, the highest level of precision and it is weatherproof.
Special feature: After initial setting no more buttons need to be pressed, speed, average speed and distance are automatically shown short after the first wheel rotation.

Please read through this operating manual carefully before use.

Contents:

• CICLOMASTER CM 2.1
• Battery Type CR 2032
• handlebar bracket with wheel-sensor and cable ties for mounting
• spoke magnet
• battery cap

Mounting

The handlebar bracket can be mounted on the handlebar and also on the stem.

Picture 1: Mounting is possible on handlebar (Position A) or stem (Position B)

Picture 2: Change bracket mounting orientation from Position A to Position B.
Remove the protective tape
Place the handle bar and fasten it with the cable ties

Picture 3: Wrap the cable from the bracket round the brake wire and fork of front wheel

Picture 4: Secure the sensor by tightening the cable ties and cut off the loose ends

Picture 5: Fix the magnet on a spoke so that it will face the sensor
Adjust the magnet position and fine tune the sensor if necessary

Picture 6: Rotate the CM 2.1 to 45 degree left and install it into the bracket. Then rotate it 45 degrees right to lock it. To unlock, rotate 45 degrees to the left.

Preparation

Using the buttons:
There are no buttons in the conventional sense on the CM 2.1, the settings are made with the two ‚buttons' on the rear of unit.

These buttons can be pressed e.g. with a ball- point pen (see pict. 7).

Inserting the battery:
Insert battery type CR2032 with plus-pole facing up. Close battery cap with a coin, being sure not to over tighten. After inserting the battery the display will show the setting of the circumferrence with the first value flashing.
(To enter again setting mode, press Set-button for 3 sec. when CM 2.1 is in normal mode.)

The following applies for all settings: SET-button changes flashing value, STORE-button stores this value and changes to the next value or the next setting display appears.

Setting the wheel circumference

Start setting: 2155 mm
Range: 0000-3999 mm
Adjust with SET- and STOREbutton, continue with STOREbutton.

The wheel circumference can be taken from the following table or measured by yourself.

Measurement of the wheel circumference (U)
(for more precise adjustment):
Make a marker on the front tyre and on the floor (e.g. with chalk). Move the bike straight ahead by exactly one tyre rotation (for a more precise measurement ensure tyre pressures are correct and be seated on the bike) and mark the location on the floor. Now measure the distance exactly between the two markers on the floor to give you the wheel circumference (in mm). – s. pict 8.

Now display shows km/h
(kilometres per hour).

If preferred, change to miles per hour with SET-button, save setting and continue with STORE-button.

After this the display shows adjustable total distance.
Range: 00000-99999 km or mi
(kilometres or miles)
Adjust with SET- and STOREbutton, continue with STOREbutton.

Display shows flashing ‚24' to choose time-display (24 – or 12- hour). 12-hour setting shows A/P in the display when time is shown.

Change with SET-button, store and continue to time setting with STORE-button.

Adjust minutes with SET-button, store with STORE-button and now adjust hours with the SETbutton.

Store the adjusted time with STORE-button.
Now all settings are finished and CM 2.1 is ready for operation.

Functions

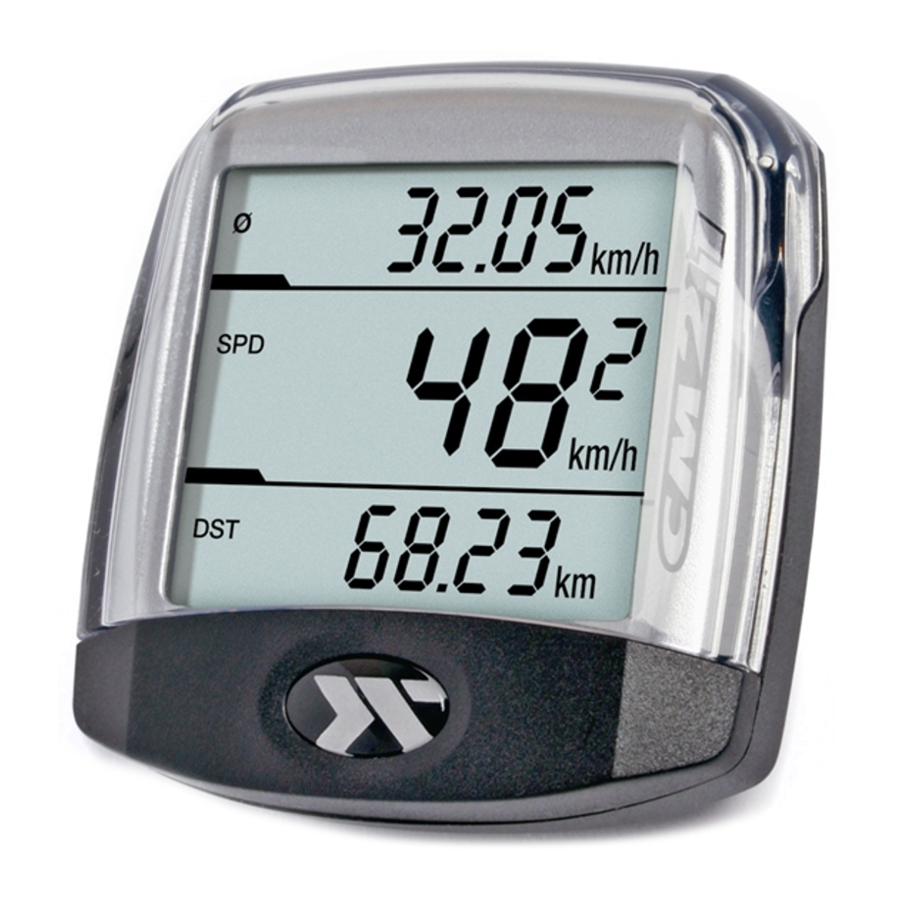

The CM 2.1 has an automatic start/stop while riding. That means, 4 sec. after first turn of the wheel the display shows following:

Upper display
average speed
Range 0 – 299,99 km/h or m/h

Middle of the display
current speed (km/h or m/h)
Range 0 – 299,9 km/h or m/h

Lower display
daily distance (DST)
Range 0 – 999,99 km or mi

1 minute after the last turn of the wheel the CM 2.1 changes to sleep mode – upper display shows time and lower display shows total distance (ODO: 0 - 99999 km or mi)

After receiving the next signal from the wheel sensor, the complete display appears again (also with pressing SET- or STORE-button).

Daily distance and average speed are automatically set to zero after 12 hours without receiving a signal from the wheel-sensor.

Total distance is set to zero by pressing the AC-button on the back of the computer or removing the battery (Attention: that also will clear all settings in the CM 2.1).

Changing the battery

Unscrew battery cap at the rear of the CM 2.1 anticlockwise with the help of a coin. Remove old battery and insert a new 3V-Lithium-battery type CR 2032 with plus-pole facing up Screw cap back on clockwise.

Please don't discard spent batteries in regular household garbage. Use the correct method of disposal.

Trouble shooting

Faulty or no display

• check to see if battery is installed properly or replace battery (Attention: removing battery will clear all settings and values in the CM 2.1)

Speed not displayed

• check to see if wheel-sensor is mounted properly
• check the position of the spoke magnet (max. 3 mm distance to wheel-sensor)
• make sure CM 2.1 is mounted in bracket correctly - check wheel circumference

Speed to high or to low

• check wheel circumference
• check to see if you are using miles or kilometres

Guarantee

We offer a guarantee for 24 months from the date of purchase on the CM 2.1. The guarantee is limited to material and processing faults. The batteries are excluded from the guarantee.

The guarantee is valid only if the computer, with accessories, has been handled and maintained carefully and according to operating instructions.

To return the CM 2.1 under conditions/terms of the guarantee, please refer to your dealer, your local distributor or send the computer with the proof of purchase(date) and all accessories, and with sufficient postage, to:

CicloSport Service
K. W. Hochschorner GmbH
Einsteinstr. 39a D-82152 Martinsried
ciclo-service@ciclosport.de
www.ciclosport.de

Please read through the instruction manual carefully before sending us your computer and check the battery. An exchange-device or the repaired device will sent back to you free of charge if justifiable guarantee-claims have come into question. Please contact our local distributor.

Repair:
If your CM 2.1 is sent in for repair (or battery change) or if a guarantee claim is not valid, repairs up to EUR 19.- will be carried out automatically.
In case of higher repair costs you will be notified. The repaired device will be sent back COD.
