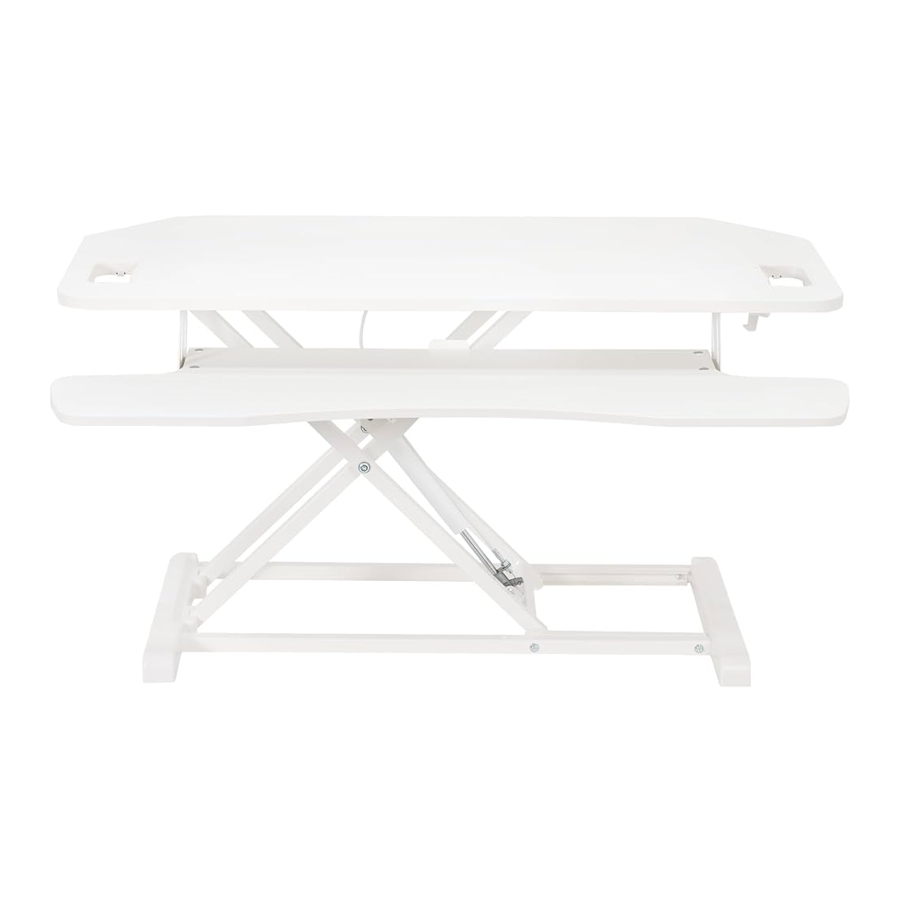

Vivo DESK-V000KL, DESK-V000LA, DESK-V000LN, DESK-V000LW Manual

PACKAGE CONTENTS

TOOLS NEEDED

DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.

CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

1. Apply Pads (D) to underside of Keyboard Tray (B).

2. Install Stopper (F) to underside of Keyboard Tray (B) using ST4.2x12mm Screws (S-B) and a Phillips screwdriver.

3. Press Foot Pads (E) into holes in base of Desk (A).

4. Cut the large plastic ties on bottom of Desk (A).

   Do not squeeze the release handle with the desk in a sideways or upside-down position.

5. Place Desk (A) right-side up on a table. Raise the desk by squeezing the handle underneath the desktop.

6. Place Keyboard Tray (B) on metal brackets on Desk (A). Secure keyboard tray to brackets using M5x10mm Screws (S-A) and a Phillips screwdriver.

7. Apply Cable Clips (C) to underside of desk assembly.


Assembly Complete

Press the side levers to raise or lower your desk riser.
When lowering without any weight on the desktop, lightly press down on riser as you lower it to allow for a smoother lowering process. If it feels difficult to lower after placing laptop and other intended setup items, apply light pressure to lower smoothly or add additional weight.
Please note the 33lb weight capacity when adding weight.

Grommet Installation

If installing a grommet compatible monitor mount, remove the plastic cap from the rear-center of the desktop. Install the mount to the open hole according to the mount's directions.

Tension Adjustment

If your desk riser lifts up or down too easily, or is too difficult, the gas spring cable can be adjusted to your desired tension. The adjustment is located at the base of your riser.

Start by loosening the Upper (1) and Lower (2) Nuts using an adjustable wrench. Loosen Nuts until they are both on the opposite ends of the Gas Spring Cable.

Option A:
Desk Is Difficult to Raise/Lower
Increase Tension
If the desk feels difficult to raise and lower, you will need to increase the Gas Spring Cable tension. Gently pull the cable away from the Lever until the Inner Nut (2) is firmly pressed against the middle divider.

Tighten Upper Nut (1) until it firmly holds the cable in its position, as shown below.

Option B:
Desk Raises/Lowers Too Easily
Decrease Tension
If the desk is raising or lowering without the handle being pressed, the tension will need loosened. Gently push the cable down towards the base of the riser until the Upper Nut (1) is firmly pressed against the middle divider.

Tighten Lower Nut (2) until it firmly holds the cable in its position, as shown below.

Keep monitor and laptop base fully on the desktop.

Follow the cable routing instructions to avoid the potential to pinch cables.

Leave enough slack in cable to allow for full range of vertical motion (15"/38 cm).

Raise desktop slowly to keep items stable.

Failure to follow these instructions may result in property damage and/or personal injury.

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.
