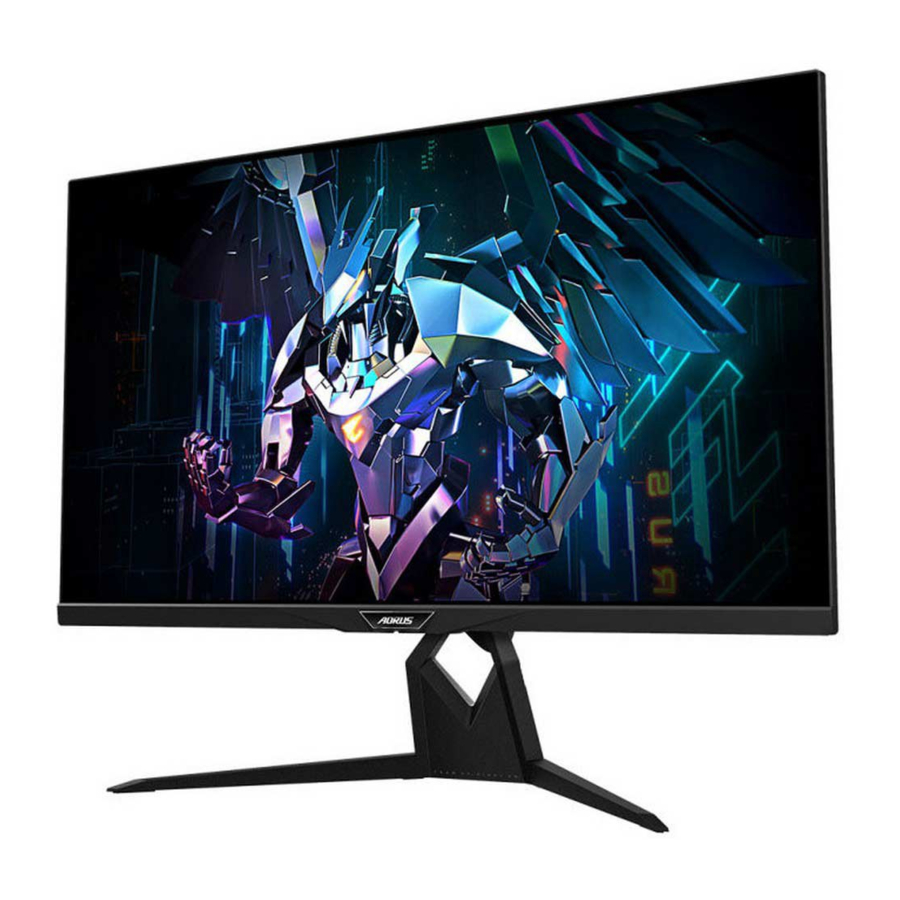

GIGABYTE AORUS FI32Q - Tactical Gaming Monitor Manual

Contents

1 INTRODUCTION
2 GETTING STARTED
3 USING THE DEVICE
4 OPERATIONS
- 4.1 Quick Menu
- 4.2 Configure the Device Settings
5 Specifications
6 Supported Timing List
7 Troubleshooting
8 Basic Care
9 Notes on USB Charging
10 SAFETY INFORMATION
11 References
12 Download manual
13 In Other Languages

INTRODUCTION

Unpacking

Making sure the box is in the correct orientation, carefully lay the box on the stable surface. Then open the cover.
Remove the items from the upper EPS foam.
Grab the upper EPS foam (through the openings) to remove it from the box. Then you can remove the monitor from the lower EPS foam.

Package Contents

The following items come with your packaging box. If any of them is missing, please contact your local dealer.

Note: Please keep the packaging box and packing materials for future transportation of the monitor.

Product Overview

Front View

Power LED
Control button

Rear View

AC IN jack
Kensington lock
HDMI ports (x2)
DisplayPort
USB Type-C port

USB upstream port
USB 3.0 ports (x2)
Microphone jack
Headphone jack
Line-Out port

Note:

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

GETTING STARTED

Installing the Monitor Base

Place the monitor on the lower EPS foam, with the screen facing down.
Align and slide the hooks of the stand into the mounting slots on the rear of the screen.
Align the monitor base with the standoff underneath the stand. Then attach the base onto the stand.
Lift the screw ring and turn it clockwise to secure the monitor base in place.
Note: You can also use a coin or a small flathead screwdriver to tighten the screw.
Lift the monitor to an upright position and place it on a table.

Adjusting the Viewing Angle

Note: Hold the monitor base so that the screen does not topple when you make the adjustment.

Adjusting the Tilt Angle
Tilt the screen forward or backward to the desired viewing angle (-5˚ to 21˚).

Adjusting the Swivel Angle
Swivel the screen to the left or right for the desired viewing angle (20˚).

Changing the Screen Orientation

Raise the screen to the highest position (130mm).
Rotate the monitor (90˚ clockwise) to portrait orientation.

Installing a Wall-Mount Bracket (Optional)

Use only a 100 x 100 mm VESA compatible wall mount kit.

Place the monitor on the lower EPS foam, with the screen facing down.
Push the locking clips inward to detach the stand from the monitor.
Pull down the stand slightly to disengage the hooks. Then remove the stand.
Attach the mounting bracket to the mounting holes at the rear of the monitor. Then use the screws provided with the wall mount kit to secure the bracket in place.

Note: To mount the monitor on the wall, refer to the installation guide that is included in the wall-mount bracket kit. VESA mounting screw size: M4 x 15mm minimum.

Making Connections

Power cable
HDMI cable
DisplayPort cable
USB Type-C cable
USB (A-Male to B-Male) cable

USB cable
Microphone cable
Headphone cable
Audio cable

Note:

To ensure that the headphone is working properly, the USB cable must also be connected to the computer via the USB upstream port.
When using the headphone, the volume adjustment of the monitor itself is actually synchronized with the volume of the Windows on the PC (even if the volume levels are not synchronized on both sides).
Therefore, to avoid damage to ears and headphone, it is recommended that when you first wear the headphone, you must ensure that the volume adjustment of the Windows and the volume adjustment of the OSD menu on the monitor are in the safe volume range (recommended below 50).
Then start playing the sound again.

USING THE DEVICE

Turning the Power On/Off

Power On

Connect one end of the power cable to the AC IN jack at the rear of the monitor.
Connect other end of the the power cable to a power outlet.
Press the Control button to turn on the monitor. The Power LED will light in white, indicating the monitor is ready to use.

Note: If the Power LED remains off after you turn on the monitor, please check the LED Indicator setting in the Settings menu.

Power Off
Press the Control button for 2 seconds to turn off the monitor. Note: When the Main menu appears on the screen, you can also turn off the monitor by moving the Control button down .

User Comfort Recommendations

The following are some tips for comfortable viewing of your monitor:

Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20 in to 30 in).
A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated.
Use adequate lighting for the type of work you are performing.
Take regular and frequent breaks (at least for 10 minutes) every 30 minutes.
Be sure to periodically look away from your monitor screen and focus on a far object for at least 20 seconds during the breaks.
Eye exercise can help reduce eye strain. Repeat these exercises frequently:

look up and down
slowly roll your eye
move your eyes diagonally.

Selecting the Input Source

Move the Control button right to enter the Input menu.
Move the Control button up/ down to select the desired input source. Then press the Control button to confirm.

OPERATIONS

Hot Key
By default, the Control button has been assigned with the specific function.
Note: To change the preset hot key function, refer to the "Quick Switch" section.
To access the hot key function, do the following:

Move the Control button up () to enter the Black Equalizer menu. Move the Control button up/down () to adjust the setting and press theControl button to confirm.

Move the Control button down to enter the Picture Mode menu. Move the Control button up/down to select the desired option and press the Control button to confirm.

Move the Control button left to enter the Volume(ESS USB) menu. Move the Control button up/down to adjust the headphone volume level and press the Control button to confirm.

Move the Control button right to enter the the Input menu. Refer to the "Selecting the Input Source" section.
Note: To close the menu, move the Control button left ().

Function Key Guide
Press the Control button to display the Main menu.

Then use the Control button to select the desired function and configure the related settings.

Dashboard
When the Main menu appears on the screen, move the Control button left to enter the Dashboard menu.

Function (function): Enable/Disable the function. When enabled, you can select the desired option(s) to be shown on the screen.
Dashboard Location (dashboard location): Specify the location of the Dashboard information to be shown on the screen.

Once the Dashboard configuration is complete, it will transfer the system data to the SOC through the USB port and display the value of the selected function(s) on the screen.

Note: Make sure the USB cable is properly connected to the USB upstream port of the monitor and the USB port of your computer.

Game Assist
When the Main menu appears on the screen, move the Control button right to enter the Game Assist menu.

AORUS Info: Configure the FPS (First Person Shooting) game related settings.
√ Select Gaming Timer to select countdown timer mode. To disable this function, set the setting to OFF (off).
√ Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time refresh rate setting.
√ Select Info Location to specify the location of the information to be shown on the screen.
Crosshair (crosshair): Select the desired crosshair type to suit your gaming environment. It makes aiming much easier.
Display Alignment (display alignment): When the function is enabled, it displays the alignment lines on the four sides of the screen, providing handy tool for you to line up multiple monitors perfectly.

Configure the Device Settings

When the Main menu appears on the screen, move the Control button up () to enter the Settings menu.
Note: Use the Control button to navigate through the menu and make adjustments.

Gaming
Configure the game related settings.

Item	Description
Aim Stabilizer	When this function is enabled, it reduces the motion blur in fast-moving games. Note: This function is not available when the frequency setting is lower than 100Hz.
Black Equalizer	Adjust the brightness of the black areas.
Super Resolution	Sharpen the low resolution images.
Display Mode	Select the aspect ratio of the screen. Full: Scale the input image to fill the screen. Ideal for 16:9 aspect images. Aspect: Display the input image without geometric distortion filling as much of the screen as possible. 1:1: Display the input image in its native resolution without scaling. 22"W (16:10): Display the input image as if on a 22"W monitor of 16:10 aspect ratio. 23"W (16:9): Display the input image as if on a 23"W monitor of 16:9 aspect ratio. 23.6"W (16:9): Display the input image as if on a 23.6"W monitor of 16:9 aspect ratio. 24"W (16:9): Display the input image as if on a 24"W monitor of 16:9 aspect ratio. 27"W (16:9): Display the input image as if on a 27"W monitor of 16:9 aspect ratio. Note: This option is not compatible with Adaptive Sync function.
Overdrive	Improve the response time of the LCD monitor.
Adaptive Sync	When this function is enabled, it eliminates the screen lag and tearing while playing games.

Configure the image related settings.

Select the one of the preset picture mode.

Standard: For editing documents or browsing websites.
VS mode: For playing FTG(Fighting) games.
FPS: For playing FPS (First Person Shooting) games.
RTS/RPG: For playing RTS (Real-Time Strategy) or RPG (Role-Playing Game) games.
Movie: For watching movies.
Reader: For viewing documents.
sRGB: For viewing photos and graphics on the computer.
Custom 1: Customized picture mode settings.
Custom 2: Customized picture mode settings.
Custom 3: Customized picture mode settings.
Green: For saving the power consumption of the monitor. Then you can configure the following image settings.

Item		Description
Brightness		Adjust the brightness of the image.
Contrast		Adjust the contrast of the image.
Dynamic Contrast		Adjust the black level of the image to achieve the optimum contrast.
6 axis Color		An advanced colour adjustment that user can individually customise hue and saturation for each axis colour.
Color Vibrance		Adjust the intensity of the more muted colours.
Sharpness		Adjust the sharpness of the image.
Gamma		Adjust the middle level of luminance.
Color Temp.		Select the colour temperature. Note: Select User Define to customise the colour temperature by adjusting the red (R), green (G), or blue (B) level according to your preference.
DCR		Adjust the black level of the image to achieve the optimum contrast.
Senseye Demo		Split the screen in half (2 windows). The image of the selected mode with its default settings will appear on the left window and the adjusted image with the new settings will appear on the right window.
Local Dimming		Improve the blackness of images displayed on the monitor.
Reset Picture		Reset all Picture settings to the default settings.

Note: The following picture modes will be shown only when HDR function is activated.

Light Enhance: Enhance the Brightness performance.
Color Enhance: Enhance the Color performance.
Dark Enhance: Enhance the Darkness performance.

Display
Configure the display screen related settings.

Item	Description
Input	Select the input source.
KVM	Configure the KVM related settings. KVM Switch: Switch the input source that has been assigned to USB-B or Type-C connection in the KVM Wizard settings. KVM Wizard: Set the input source to be bound with USB Type-B connection and USB Type-C KVM Reset: Restore the KVM default settings.
HDR	Enable/Disable the HDR function. Note: This option is only available for HDMI input.
RGB Range	Select an appropriate RGB range setting or let the monitor to detect it automatically. Note: This option is only available for HDMI input.
Overscan	When this function is enabled, it slightly enlarges the input image to hide the outermost edges of the image. Note: This option is only available for HDMI input.

PIP/PBP
Configure the multi-picture related settings.

Item	Description
OFF	Disable the PIP/PBP function.
PIP	Split the screen into 2 parts (main window and inset window). Source: Change the input source for the inset window. USB Control: Select the control source from USB-B or Type-C. PIP Size: Adjust the inset window size. Location: Move the inset window position. Display Switch: Swap the two windows. Audio Switch: Select which audio source you want to hear the sound from.
PBP	Display 1x1 split screen (left and right windows). Source: Change the input source for the right window. USB Control: Select the control source from USB-B or Type-C. PBP Size: Adjust the window size. Display Switch: Swap the two windows. Audio Switch: Select which audio source you want to hear the sound from.

Note: PIP/PBP is not compatible with HDR and Adaptive Sync function.

System
Configure the system related settings (configure the system related settings).

Item	Description
Language	Select an available language for the OSD menu (select an available language for the OSD menu).
RGB LED	When this function is enabled, you can select the preset LED colour and effect to be displayed on the rear of the monitor (when this function is enabled, you can select the preset LED colour and effect to be displayed on the rear of the monitor). Note: Set the input source to be bound with USB Type-B connection.
Audio	Configure the audio related settings (configure the audio related settings). Volume(Line out): Adjust the volume level for 3.5mm jack. Volume(ESS USB): Adjust the volume level for ESS USB input. Note: Set the input source to be bound with USB Type-B connection. Mute: Enable/Disable the mute function. 600R: For high impedance device (>600 ohm), turn on this option to have better sound quality.
OSD Settings	Configure the on-screen display (OSD) menu related settings (configure the on-screen display (OSD) menu related settings). Display Time: Set the length of time the OSD menu remains on the screen. OSD Transparency: Adjust the OSD menu transparency.
	OSD Lock: When this function is enabled, no OSD adjustment is allowed (when this function is enabled, no OSD adjustment is allowed). Note: To disable the OSD lock function, press the Control key. When the message appears on the screen, select Yes to confirm.
Quick Switch	Assign the function of the hot keys (assign the function of the hot keys). Available options: Aim Stabilizer, Black Equalizer, Volume, Input, Contrast, Brightness, Picture Mode, and KVM Switch. The default setting of the hot keys as below: Up : Black Equalizer Down : Picture Mode Right : Input Left : Volume Note: The Monitor uses low blue light panel and compliance with TÜV Rheinland Low Blue Light Hardware Solution at factory reset/default setting mode (Brightness: 40%, Contrast: 50%, CCT: Normal, Preset mode: Standard).
Other Settings	Resolution Notice: When this function is enabled, the recommended resolution message will appear on the screen when the monitor switches to another input source. Input Auto Switch: When this function is enabled, it automatically switches to an available input source. Auto Power OFF: When this function is enabled, the monitor will automatically turn off after a certain amount of time. LED Indicator: By default, the LED indicator is set to Always ON. Always ON: The Power LED lights white during operation and lights orange in standby mode. Always OFF: Turn off the Power LED. Standby ON: The Power LED lights orange in standby mode. When the power supply is switched off, the Power LED will remain off.

Save Settings
Set the personalised OSD configurations for Setting1, Setting2, or Setting3.

Item	Description
Save	Save the customised settings.
Load	Load the saved settings.

Reset All
Restore the monitor to its factory default settings (restore the monitor to its factory default settings).

Specifications

Item	Specifications
Panel Size	31.5-inch
Aspect Ratio	16:9
Resolution	2560 x 1440
LED Life	30000 hours (min.)
Pixel Pitch	0.273(H) x 0.273(V)
Brightness	350 (typ.)
Contrast Ratio	1000:1 (typ.)
Color Depth	16.7M
Active Display area	698.11(H) x 392.69(V)
Viewing Angle	178°(H) / 178°(V)
Frequency	DP: 170Hz (Overclocking) HDMI: 144Hz
Input/Output Terminals	2x HDMI 2.0 2x USB 3.0 1x DP1.4 (downstream), 1x Headphone support BC 1.2 charging (5V/1.5A) 1x Microphone 1x USB upstream 1x USB-C (5V/3A, 9V/2A, 12V/1.5A, 1x Line-Out 15V/1A)
Power Supply	100 to 240Vac at 50/60 Hz
Power Consumptions	On: 110W (max.) Standby: 0.5W Off: 0.3W
Dimensions (W x H x D)	717.6 x 598.3 x 283 mm (with stand)
Weight	10.8 ±0.5 kgs (Net)
Temperature Range (operation)	0°C to 40°C

Note: Specifications subject to change without notice.

Supported Timing List

Timing List (Timing List)	HDMI	DisplayPort/ USB Type-C
640x480@60Hz
640x480@75Hz
720x480@60Hz
720x576P@50Hz
800x600@60Hz
800x600@75Hz
1024x768@60Hz
1024x768@75Hz
1280x720@60Hz
1280x720@100Hz
1280x720@120Hz
1920x1080@60Hz
1920x1080@120Hz
1920x1080@144Hz
1920x1080@165Hz
1920x1080@170Hz (Overclocking)
2560x1440@60Hz
2560x1440@120Hz
2560x1440@144Hz
2560x1440@165Hz
2560x1440@170Hz (Overclocking)

Troubleshooting

Problem (Problem)	Possible Solution(s) (Possible Solution(s))
No power	Make sure the power cable is properly connected to the power source and the monitor. Check the cable and plug to make sure they are not broken. Make sure the monitor is turned on.
No image appears on the screen	Make sure the monitor and the computer are properly connected and both devices are turned on. Make sure you have selected the correct input source. Adjust the Brightness (Brightness) and Contrast (Contrast) settings.
The image does not fill the entire screen	Try different Display Mode (Display Mode) (aspect ratio) setting.
The colours are distorted	Make sure the input signal cable is properly connected. Configure the image related settings. Refer to the "Picture" section.
No sound or volume is low	Make sure the headphone cable is properly connected. Adjust the volume level. Adjust your computer sound related settings.
ANC or Headphone no sound	Ensure that the USB cable is also connected to the computer via the USB upstream port.

Note: If the problem persists, please contact our customer service for further assistance.

Basic Care

When the screen becomes dirty, do the following to clean the screen:

Wipe the screen with your soft, lint-free cloth to remove any residual dust.
Spray or apply the cleaning fluid onto a soft cloth. Then wipe the screen gently with the damp cloth.

Note:

Make sure that the cloth is damp, but not wet.
When wiping, avoid applying excessive pressure on the screen.
Acidic or abrasive cleaners can damage the screen.

Notes on USB Charging

The following devices are not compatible with BC 1.2 of CDP mode. When the Hub is connected to a PC, these devices cannot be charged using the USB cable.

Vendor (Vendor)	Device (Device)	PID/VID
Apple	IPad	PID_129A/VID_05AC
Samsung	Galaxy Tab2 10.1	PID_6860/VID_04E8
Samsung	GALAXY TabPro	PID_6860/VID_04E8

SAFETY INFORMATION

Safety Precautions (Safety Precautions)
Read through the following Safety Precautions (Safety Precautions) before using the monitor.

Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer.
Keep the plastic packaging bag for the product in a place that cannot be reached by children.
Before connecting the monitor to the power outlet, make sure that the voltage rating of the power cable is compatible with the power specification in the country where you are located.
The power cord plug must be connected to a properly wired and grounded power outlet.
Do not touch the plug with wet hands, otherwise easily cause electric shock.
Place the monitor in a stable and well-ventilated place.
Do not place the monitor near any heat sources such as electric radiators or direct sunlight.
The holes or openings on the monitor are for ventilation. Do not cover or block the ventilation holes with any objects.
Do not use the monitor near water, drinks, or all types of liquids. Failure to do so may result in electric shock or damage to the monitor.
Make sure to unplug the monitor from the power outlet before cleaning.
As the screen surface is easy to be scratched, avoid touching the surface with any hard or sharp object.
Use a soft lint-free cloth instead of a tissue to wipe the screen. You may use a glass cleaner to clean the monitor if required. However, never spray the cleaner directly onto the screen.
Disconnect the power cable if the monitor is not being used for a long period of time.
Do not attempt to disassemble or repair the monitor yourself.
