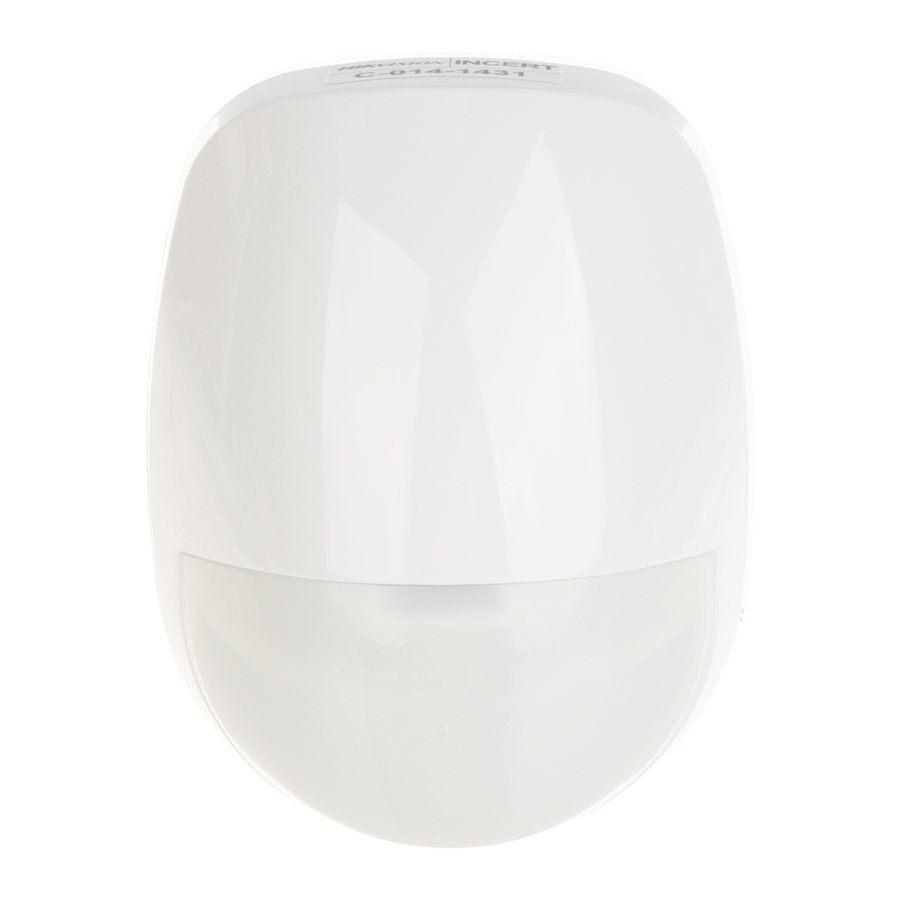

HIKVISION DS-PDP18-EG2 - 18m Digital PIR Detector Manual

Introduction

The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/). Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
Hikvision and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.

Disassembling the Detector

The Printed Circuit Board (PCB)

Installation Method

Detector Backplane Installation

Bracket Installation

1. Ceiling Bracket Fitting (Non EN compliant)

   Note: Brackets are optional.
2. Wall Bracket Fitting


Installation Hints

The 18 m Lens

To use the pet immunity function, please install a pet mask.

1. Detection Range 85.9°
   52 zones
   4 planes


PET Table

2. Mounting Height
   Mounting height range from 1.8 m to 2.4 m.
   Note: PET immunity is available up to 10 m and at a height that is below the top plane of view.

Resistor Wiring

The detector has two method for resistor wiring:

1. Using headers to select the End of Line resistance (Control panel dependent) on the ALARM/TAMPER header pins.
2. Select an resistance (Control panel dependent), and add the resistor to ALARM/TAMPER wiring ports of the detector.

Note: If EOL (End of Life) wiring is not used, leave the headers OFF. Of the headers and the header pins does not match, do not force the header, please select the method 2 to wire the resistor. Method 1 and method 2 should not be used on the ALARM/TAMPER at the same time.

1. Alarm Resistance
   1K,
   2K2,
   4K7,
   5K6,
   8K2

2. Tamper Resistance
   5K6,
   4K7,
   2K2,
   1K


Choose the Connection Type

1. Normally Closed
   1. Alarm Control Panel

   2. Detector
2. Single End of Line Wiring
   1. Alarm Control Panel

   2. Detector
      The connection shows the example:
      1. Normal: 1K
      2. Alarm: Infinite
      3. Tamper: 0 K
3. Double End of Line Wiring
   1. Alarm Control Panel

   2. Detector
      The connection shows the example:
      1. Normal: 1K
      2. Alarm: 2K
      3. Tamper: 0 K or infinite
4. Two Double End of Line Detectors to One Input
   1. Alarm Control Panel


Powering up

After powering on, the indicator flashes rapidly. Once the detector self test is completed, the LED indicator will go out until the detector detects movement.

Dimension and Weight

Technical Specification
