Shimano FC-M590-S, FC-M590-L, FC-M590 - Oldingi tishli g'ildirak qo'llanmasi

Mundarija

Umumiy xavfsizlik ma'lumotlari

  • Velosipedda uchayotganda kiyimingizning manjetlari zanjirga ilashib qolmasligiga e'tibor bering, aks holda velosipeddan yiqilib tushishingiz mumkin.
  • Zanjirning tarangligi to'g'ri ekanligini va zanjir shikastlanmaganligini tekshiring. Agar taranglik juda zaif bo'lsa yoki zanjir shikastlangan bo'lsa, zanjirni almashtirish kerak. Agar bu bajarilmasa, zanjir uzilib, jiddiy jarohatlarga olib kelishi mumkin.
  • Chap krank qo'lini o'rnatish murvatlarini bir vaqtning o'zida to'liq tortib qo'yishdan ko'ra, navbatma-navbat bosqichma-bosqich torting. Yakuniy tortish momentlari 12 - 14 N·m oralig'ida ekanligini tekshirish uchun moment kalitidan foydalaning. Bundan tashqari, taxminan 100 km (60 milya) yurganingizdan so'ng, tortish momentlarini qayta tekshirish uchun moment kalitidan foydalaning. Vaqti-vaqti bilan tortish momentlarini tekshirib turish ham muhimdir.
    Agar tortish momentlari juda zaif bo'lsa yoki o'rnatish murvatlari navbatma-navbat bosqichma-bosqich tortilmasa, chap krank qo'li tushib ketishi va velosiped ag'darilib ketishi mumkin, natijada jiddiy jarohatlar paydo bo'lishi mumkin.
  • Velosipedda yurishdan oldin krank qo'llarida yoriqlar yo'qligini tekshiring. Agar yoriqlar bo'lsa, krank qo'li sinishi va velosipeddan yiqilib tushishingiz mumkin.
  • Agar ichki qopqoq to'g'ri o'rnatilmagan bo'lsa, o'q zanglab, shikastlanishi mumkin, velosiped ag'darilib ketishi va natijada jiddiy jarohatlar paydo bo'lishi mumkin.
  • Ehtiyot qismlarni o'rnatishdan oldin xizmat ko'rsatish bo'yicha ko'rsatmalarni diqqat bilan o'qing. Bo'shashgan, eskirgan yoki shikastlangan qismlar velosipedning ag'darilib ketishiga va jiddiy jarohatlarga olib kelishi mumkin. Biz faqat original Shimano ehtiyot qismlaridan foydalanishni qat'iy tavsiya qilamiz.
  • Ehtiyot qismlarni o'rnatishdan oldin xizmat ko'rsatish bo'yicha ko'rsatmalarni diqqat bilan o'qing. Agar sozlashlar to'g'ri bajarilmasa, zanjir tushib ketishi mumkin va bu sizning velosipeddan yiqilib tushishingizga olib kelishi mumkin, bu esa jiddiy jarohatlarga olib kelishi mumkin.
  • Ushbu texnik xizmat ko'rsatish bo'yicha ko'rsatmalarni diqqat bilan o'qing va ularni keyinroq foydalanish uchun xavfsiz joyda saqlang.
  • Bundan tashqari, agar pedal aylantirish normal holatda bo'lmasa, buni yana bir bor tekshiring.
  • Velosipedda yurishdan oldin, ulanishda hech qanday bo'shliq yoki bo'shashmaslik yo'qligini tekshiring. Shuningdek, vaqti-vaqti bilan krank qo'llari va pedallarni qayta torting.
  • Agar pastki qavs o'qi va chap krank qo'li ulagichidan g'ichirlagan ovoz eshitilsa, ulagichga moy surting va keyin uni belgilangan momentga torting.
  • Pastki qavsni yuqori bosimli suv purkagichlari bilan yuvmang.
  • Agar podshipniklarda bo'shashishni his qilsangiz, pastki qavsni almashtirish kerak.
  • Agar bo'g'inlardagi bo'shashish miqdori shunchalik katta bo'lsa, sozlashning iloji bo'lmasa, siz derailleurni almashtirishingiz kerak.
  • Vaqti-vaqti bilan zanjirli g'ildiraklarni neytral detarjenda yuvib, keyin ularni yana moylash kerak. Bundan tashqari, zanjirni neytral detarjen bilan tozalash va uni moylash zanjirli g'ildiraklar va zanjirning xizmat qilish muddatini uzaytirishning samarali usuli bo'lishi mumkin.
  • Agar foydalanish vaqtida zanjir zanjirli g'ildiraklardan tushib ketsa, zanjirli g'ildiraklar va zanjirni almashtiring.
  • Zanjir rasmda ko'rsatilgan holatda bo'lganda, zanjir oldingi zanjirli g'ildiraklar yoki oldingi derailleur bilan aloqa qilishi va shovqin hosil qilishi mumkin. Agar shovqin muammo bo'lsa, zanjirni keyingi kattaroq orqa tishli g'ildirakka yoki undan keyingi g'ildirakka o'tkazing.
  • O'rnatishdan oldin chap va o'ng adapterlarga moy surting.
  • Ushbu xizmat ko'rsatish bo'yicha ko'rsatmalar bilan birgalikda oldingi haydovchi tizimi uchun xizmat ko'rsatish bo'yicha ko'rsatmalarni o'qib chiqing.
  • Ehtiyot qismlar tabiiy eskirish yoki normal foydalanish natijasida buzilishdan kafolatlanmaydi.
  • Maksimal ishlash uchun biz Shimano moylash materiallari va texnik xizmat ko'rsatish mahsulotlarini tavsiya qilamiz.
  • O'rnatish, sozlash, texnik xizmat ko'rsatish yoki foydalanish usullari bo'yicha har qanday savollar uchun professional velosiped sotuvchisiga murojaat qiling.

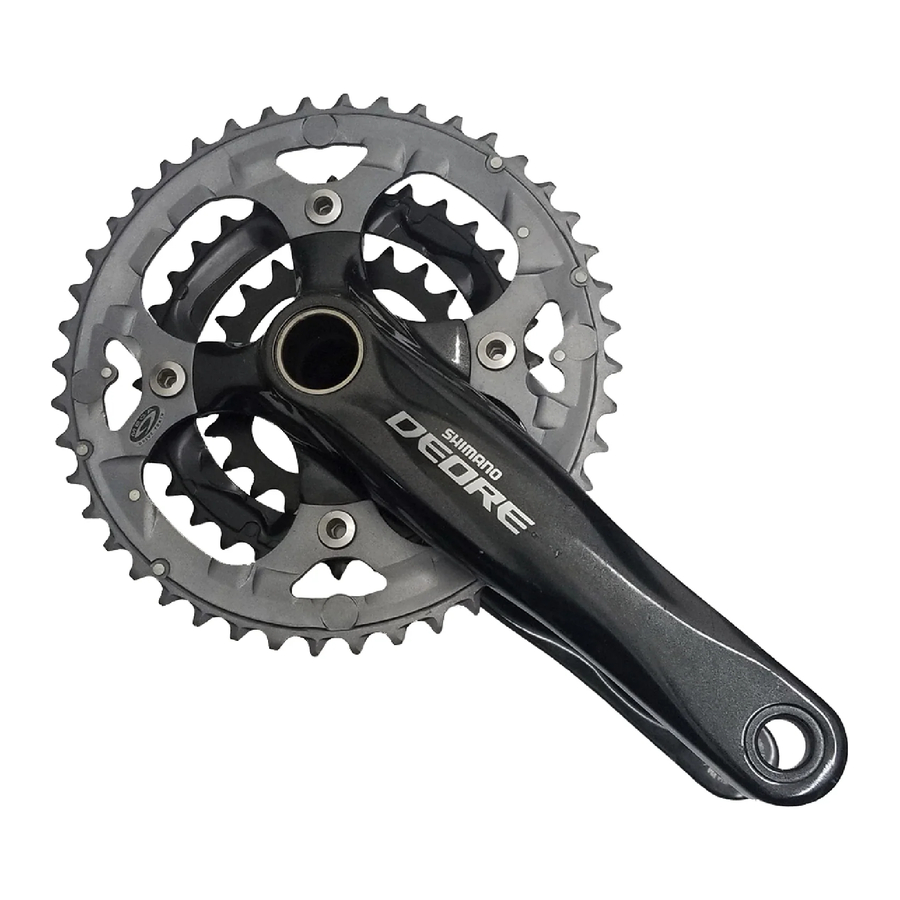

DEORE Oldingi tishli g'ildirak

FC-M590-S Kumush versiya (Silver Version)
FC-M590-L Qora versiya (Black Version)

Qismlar

  • Tishli halqa tishlarining kombinatsiyasi: 44--32--22T / 48--36--26T
  • Bolt aylana diametri: 104 mm...(Tashqi tishli va o'rta tishli uchun), 64 mm...(Ichki tishli uchun)
ITEM NO. SHIMANO CODE NO. DESCRIPTION (TA'RIF) FC-M770 FC-M591 FC-M582
O'ZARO ALMAShINUVChANLIK (INTERCHANGEABILITY)
1 Y-1F8 11100 Crank Arm Fixing Bolt (Krank tutqichini mahkamlash bolti) A A A
2 Y-1LD 98010 Left Hand Crank Arm 170 mm (Kumush) FC-M590-S uchun (Left Hand Crank Arm 170 mm (Silver) for FC-M590-S)
Y-1LD 98020 Left Hand Crank Arm 170 mm (Qora) FC-M590-L uchun (Left Hand Crank Arm 170 mm (Black) for FC-M590-L)
Y-1LD 98030 Left Hand Crank Arm 175 mm (Kumush) FC-M590-S uchun (Left Hand Crank Arm 175 mm (Silver) for FC-M590-S)
Y-1LD 98040 Left Hand Crank Arm 175 mm (Qora) FC-M590-L uchun (Left Hand Crank Arm 175 mm (Black) for FC-M590-L)
3 Y-1KS 98030 Clamp Bolt (M6 x 19) & Washer (Qisqich bolti (M6 x 19) va shayba) A
4 Y-1FU 98120 Plate (Plastinka) A A A
5 Y-1F3 16000 Ring (Halqa) A A A
6 Y-1LD 98050 Adapter Unit (Adapter bloki)
7 Y-1LD 98060 Left Hand Adapter (B.C.1.37" x 24T) English Thread (Chap qo'l adapteri (B.C.1.37" x 24T) inglizcha rezba) A
8 Y-1F8 13000 Spacer (2.5 mm) (Oraliq (2.5 mm)) A A A
9 Y-1J8 98060 Inner Cover & O-Ring (Ichki qopqoq va O-halqa) A
10 Y-1TF 21000 O-Ring (O-halqa) A A A
11 Y-1LD 98070 Right Hand Adapter (B.C.1.37" x 24T) English Thread (O'ng qo'l adapteri (B.C.1.37" x 24T) inglizcha rezba) A
12 Y-1FM 98020 Double Gear Fixing Bolt (M8 x 8.5) & Nut (4 sets) (Qo'sh tishli mahkamlovchi bolt (M8 x 8.5) va gayka (4 to'plam)) A
13 Y-1FM 98030 Inner Gear Fixing Bolt (M8 x 8.5 / 4 pcs.) (Ichki tishli mahkamlovchi bolt (M8 x 8.5 / 4 dona)) A
14 Y-1J8 22000 Chainring 22T (Kumush) FC-M590-S uchun (Chainring 22T (Silver) for FC-M590-S) A
Y-1LD 22000 Chainring 22T (Qora) FC-M590-L uchun (Chainring 22T (Black) for FC-M590-L) A
Y-1FV 26000 Chainring 26T (Kumush) FC-M590-S uchun (Chainring 26T (Silver) for FC-M590-S) A
Y-1LD 26000 Chainring 26T (Qora) FC-M590-L uchun (Chainring 26T (Black) for FC-M590-L) A
15 Y-1J8 98070 Chainring 32T (Kumush) FC-M590-S uchun (Chainring 32T (Silver) for FC-M590-S) A
Y-1LD 98080 Chainring 32T (Qora) FC-M590-L uchun (Chainring 32T (Black) for FC-M590-L) A
Y-1J8 98080 Chainring 36T (Kumush) FC-M590-S uchun (Chainring 36T (Silver) for FC-M590-S) A
Y-1LD 98090 Chainring 36T (Qora) FC-M590-L uchun (Chainring 36T (Black) for FC-M590-L) A
16* Y-1GX 98050 Chainring 44T (Qora) FC-M590-S uchun (Chainring 44T (Black) for FC-M590-S)
Y-1GX 98060 Chainring 44T (Qora) FC-M590-S zanjir himoyasi uchun (Chainring 44T (Black) for FC-M590-S Chain Guard) A
Y-1LD 98100 Chainring 44T (Kulrang) FC-M590-L uchun (Chainring 44T (Gray) for FC-M590-L)
Y-1LD 98110 Chainring 44T (Kulrang) FC-M590-L zanjir himoyasi uchun (Chainring 44T (Gray) for FC-M590-L Chain Guard) A
Y-1GX 98090 Chainring 48T (Qora) FC-M590-S uchun (Chainring 48T (Black) for FC-M590-S)
Y-1LD 98160 Chainring 48T (Qora) FC-M590-S zanjir himoyasi uchun (Chainring 48T (Black) for FC-M590-S Chain Guard) A
Y-1LD 98120 Chainring 48T (Kulrang) FC-M590-L uchun (Chainring 48T (Gray) for FC-M590-L)
Y-1LD 98130 Chainring 48T (Kulrang) FC-M590-L zanjir himoyasi uchun (Chainring 48T (Gray) for FC-M590-L Chain Guard) A
17 Y-1J8 98090 44T Chain Guard & Fixing Bolts (44T zanjir himoyasi va mahkamlovchi boltlar) A
18 Y-1CY 98020 44T Chain Guard Fixing Bolt (4 pcs.) (44T zanjir himoyasini mahkamlovchi bolt (4 dona)) A A
19 Y-1GX 14000 44T Chain Guard (44T zanjir himoyasi) A
20 Y-1LD 98140 48T Chain Guard & Fixing Screws for FC-M590-S (48T zanjir himoyasi va FC-M590-S uchun mahkamlovchi vintlar) A
Y-1LD 98150 48T Chain Guard & Fixing Screws for FC-M590-L (48T zanjir himoyasi va FC-M590-L uchun mahkamlovchi vintlar) A
21 Y-1D2 98010 48T Chain Guard Fixing Screw (4 pcs.) (48T zanjir himoyasini mahkamlovchi vint (4 dona)) A
22 Y-1LD 12000 48T Chain Guard for FC-M590-S (48T zanjir himoyasi FC-M590-S uchun) A
Y-1LD 13000 48T Chain Guard for FC-M590-L (48T zanjir himoyasi FC-M590-L uchun) A
  1. Bir xil qismlar. (Same parts.)
  2. Qismlar ishlatishga yaroqli, ammo materiallar, tashqi ko'rinish, pardozlash, o'lcham va hokazolar bilan farq qiladi. (Parts are usable, but differ in materials, appearance, finish, size, etc.)

Belgining yo'qligi o'zaro almashinuvchanlik yo'qligini bildiradi. (Absence of mark indicates non-interchangeability.)

Texnik xususiyatlar

Tishli g'ildirak

Model raqami FC-M590 / FC-M591 FC-M532 / FC-M533-K FC-M542 FC-M543-K
Tishli g'ildirak tishlarining kombinatsiyasi 44-32-22T / 48-36-26T 44-32-22T / 48-36-26T 44-32-22T 44-32-22T / 48-36-26T
Bolt aylana diametri 104 mm / 64 mm
Crank qo'l uzunligi 170 mm, 175 mm
Zanjir liniyasi 50 mm
Pastki qavs qobig'ining kengligi (Ip o'lchamlari) 68, 73 mm (1.37 X 24 T.P.I.)
Qo'llaniladigan pastki qavs SM-BB51 SM-BB50

Pastki qavs

Model raqami SM-BB51 SM-BB50
Qo'llaniladigan old tishli g'ildirak FC-M590 / FC-M591 FC-M543-K / FC-M542 / FC-M533-K / FC-M532
Pastki qavs qobig'ining kengligi (Ip o'lchamlari) 68, 73 mm (1.37 X 24 T.P.I.)

Old tishli g'ildirakni o'rnatish

Quyidagi rasmda ko'rsatilgan tartibga amal qiling.

Old tishli g'ildirakni o'rnatish

  1. O'ng adapter (soat miliga teskari ip) va chap adapter (soat mili bo'yicha ip) o'rnatish uchun TL-FC32/36 maxsus asbobidan foydalaning.
    Tortish momenti: 35 - 50 N·m {305 - 435 in. lbs.}
  2. O'ng krank blokini joylashtiring.
  3. Chap krankning A qismini o'ng krank blokining o'qiga, truba keng bo'lgan joyga o'rnating.
  4. Qopqoqni tortish uchun TL-FC16 dan foydalaning.
    Tortish momenti: 0.7 - 1.5 N·m {6 - 13 in. lbs.}
  5. To'xtatuvchi plastinkani ichkariga suring va plastinka pinining mahkam o'rnashganligini tekshiring, so'ngra chap krank qo'lining boltini torting. (5 mm Allen kaliti)
    Eslatma: Har bir bolt teng va bir xilda 12 - 14 N·m {106 - 122 in. lbs.} gacha tortilishi kerak.

Spacer o'rnatish usuli

  1. Pastki qavs qobig'ining kengligi 68 mm yoki 73 mm ekanligini tekshiring.
  2. Keyin, quyidagi rasmlarga murojaat qilib, adapter o'rnating.

< Oddiy turi >

Oddiy turi

* Agar siz 68 mm kenglikdagi tasma turi va pastki qavs qobig'i bilan uchta 2,5 mm li spacerlardan foydalanayotgan bo'lsangiz, uchta spacerni o'rnating, shunda ikkitasi o'ngda va bittasi chapda bo'ladi.

< Zanjir qutisi spetsifikatsiyalari >

Zanjir qutisi spetsifikatsiyalari

** 1,8 mm zanjir qutisining qalinligiga mos keladi.

SHIMANO AMERICAN CORPORATION
One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003

SHIMANO EUROPE B.V.
Industrieweg 24, 8071 CT Nunspeet, The Netherlands Phone: +31-341-272222 3-77

SHIMANO INC.
Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan

E'tibor bering: texnik xususiyatlar ogohlantirishsiz yaxshilanish uchun o'zgartirilishi mumkin. (Inglizcha) © Feb. 2009 by Shimano Inc. XBC IZM Malayziyada chop etilgan.
